Drive Plate Removal/Installation: Notes

Special Service Tool (SST)

49 E011 1A0 Ring gear brake set

Courtesy of MAZDA MOTORS CORP.

-

-

1. Remove the transaxle. (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [GW6A-EL] .) (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [GW6AX-EL] .)
2. Remove in the order indicated in the table.

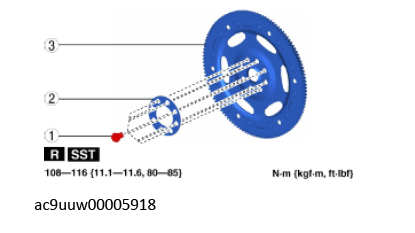

   Fig 1: Removing Transaxle

   Courtesy of MAZDA MOTORS CORP.
   COMPONENT DESCRIPTION



   1	Drive plate installation bolts (See Drive Plate Installation Bolts Removal Note .) (See Drive Plate Installation Bolts Installation Note .)
   2	Backing plate
   3	Drive plate

3. Install in the reverse order of removal.
