Sensor Cover Removal/Installation

  1. Move sensor cover No. 1 in the direction of the arrow shown in the figure and detach the tabs from sensor cover No. 2.

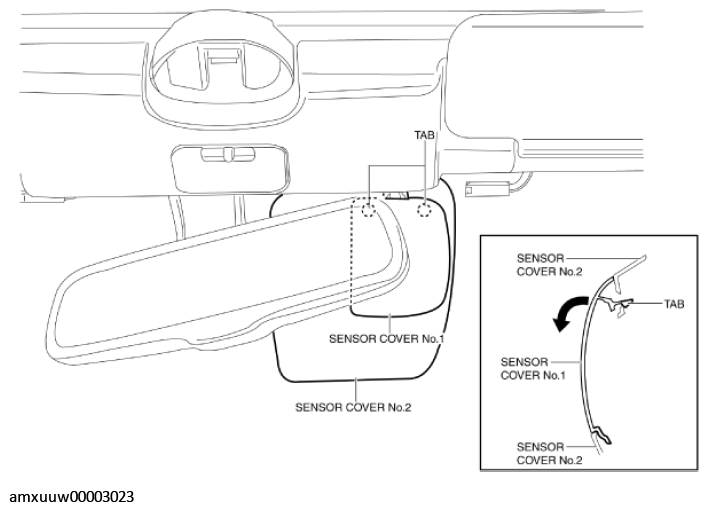

    Fig 1: Removing Sensor Cover Tabs (2)
    G11275162Courtesy of MAZDA MOTORS CORP.
  2. Move sensor cover No. 1 in the direction of the arrow shown in the figure and remove it while detaching the guides.

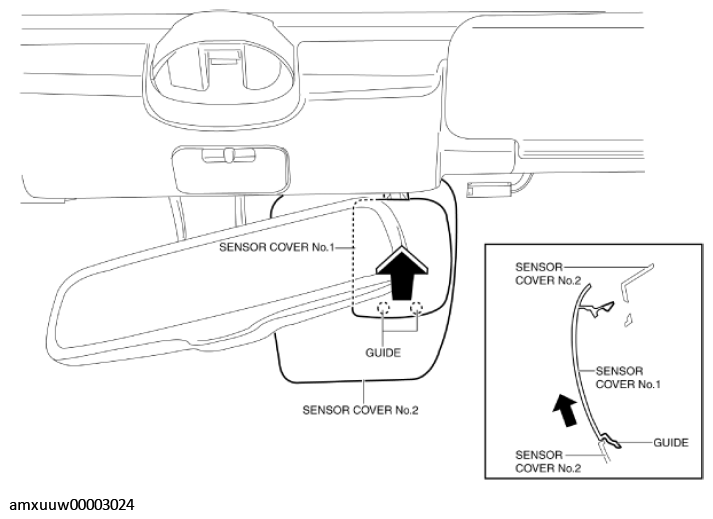

    Fig 2: Moving Sensor Cover (1)
    G11275163Courtesy of MAZDA MOTORS CORP.
  3. Move sensor cover No. 2 in the direction of the arrow shown in the figure and remove it while detaching the tabs.

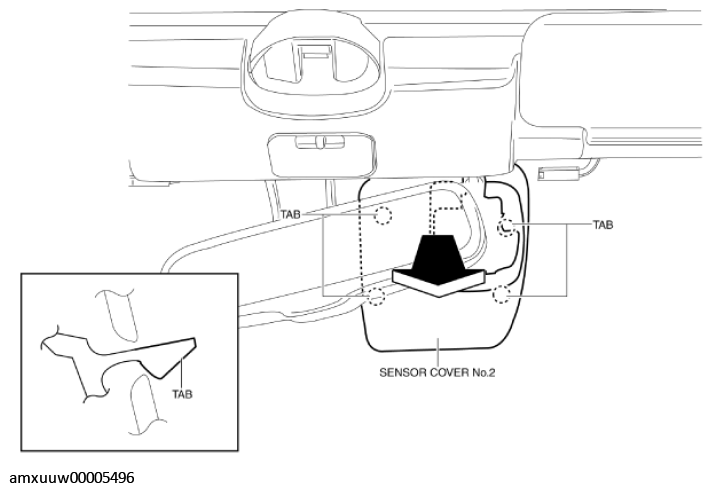

    Fig 3: Moving Sensor Cover (2)
    G11275164Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
