Starter Removal/Installation: Notes

WARNING:

Remove and install all parts when the engine is cold, otherwise they can cause severe burns or serious injury.
When the battery cables are connected, touching the vehicle body with starter terminal B will generate sparks. This can cause personal injury, fire, and damage to the electrical components. Always disconnect the negative battery cable before performing the following operation.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION ).
Remove the front crossmember under cover. (See FRONT CROSSMEMBER UNDER COVER REMOVAL/INSTALLATION ).
Remove the bolts shown in the figure below and set the oil pipes aside. (AT) (See OIL COOLER REMOVAL/INSTALLATION ).

Fig 1: Identifying Starter Oil Pipe And Bolts
Courtesy of MAZDA MOTORS CORP.
Remove the bolts shown in the figure below and disconnect the clutch release cylinder with the pipe connected. (MT)

Fig 2: Clutch Release Cylinder And Bolts With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Remove the bolt shown in the figure below and set the ground aside.

Fig 3: Clutch Release Cylinder Ground And Bolt With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Remove in the order indicated in the figure below.
Install in the reverse order of removal.

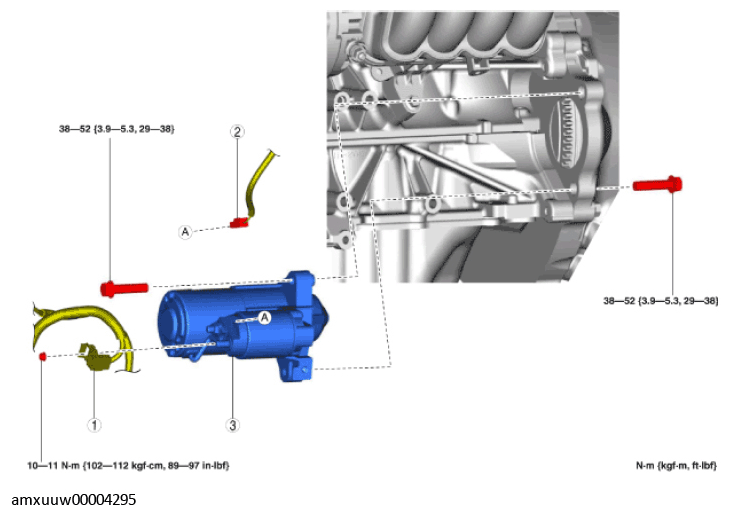

Fig 4: Starter, Terminal B And S Cable Bolts With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Terminal Bcable
2	Terminal S connector
3	Starter (See Starter Installation Note (AT) .)
