Symptom Troubleshooting - Engine Control
>>
Foreword
>>
Troubleshooting Procedure
Troubleshooting Procedure

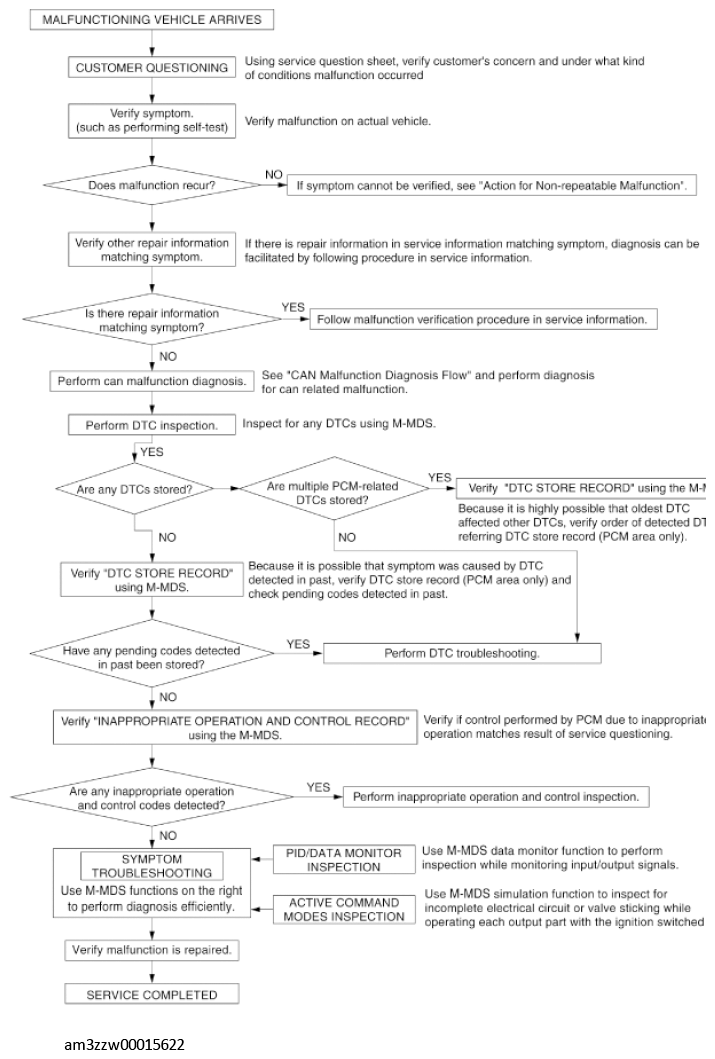

Fig 1: Malfunctioning Vehicle Troubleshooting Flowchart
Courtesy of MAZDA MOTORS CORP.
*1: (See
CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW
.)
