Remote Transmitter Disassembly/Assembly: Assembly

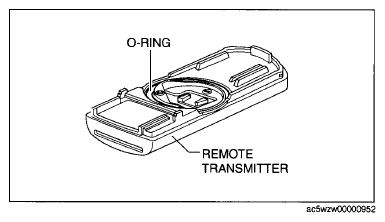

Verify that the O-ring is installed to the remote transmitter.

Fig 1: Remote Transmitter And O-Ring
Courtesy of MAZDA MOTORS CORP.
NOTE:
- If the O-ring is removed, install it before installing the battery.

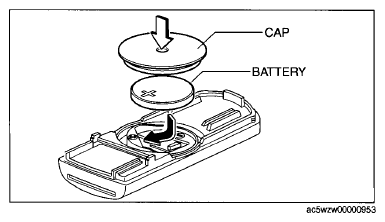

Install a new battery (CR2025) in the direction of the arrow shown in the figure below with the negative pole facing down.

Fig 2: Battery (CR2025)
Courtesy of MAZDA MOTORS CORP.
Install the cap.

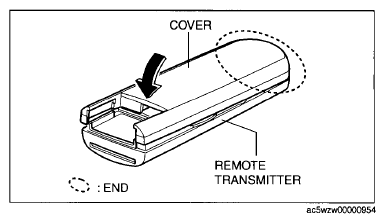

Align the cover to the transmitter from its end and press it in the direction of the arrow shown in the figure below to engage the tabs of the cover with the remote transmitter.

Fig 3: Engaging Tabs Of Cover With Remote Transmitter
Courtesy of MAZDA MOTORS CORP.

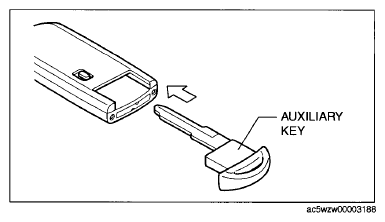

Insert the auxiliary key.

Fig 4: Inserting Auxiliary Key
Courtesy of MAZDA MOTORS CORP.
