Remote Transmitter Disassembly/Assembly: Disassembly

  1. Press the knob on the remote transmitter and pull the auxiliary key out.

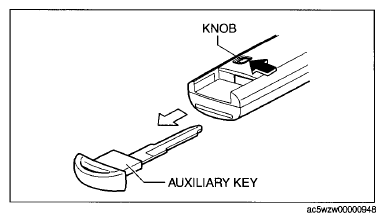

    Fig 1: Pressing Knob On Remote Transmitter
    G09077093Courtesy of MAZDA MOTORS CORP.
  2. Insert a tape-wrapped flathead screwdriver into the notch on the remote transmitter and turn it in the direction of the arrow shown in the figure below to detach tabs A from the remote transmitter.

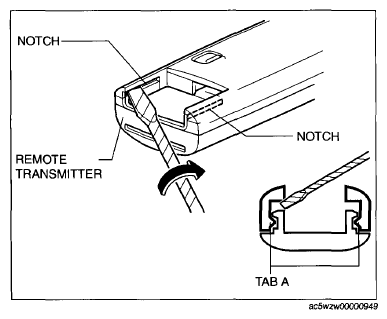

    Fig 2: Detaching Tabs From Remote Transmitter
    G09077094Courtesy of MAZDA MOTORS CORP.
  3. Insert a tape-wrapped flathead screwdriver between the remote transmitter and the cover and slide it in the direction of arrow (1) shown in the figure below.

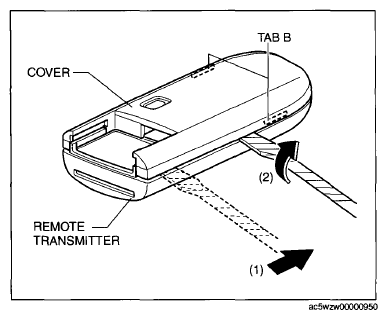

    Fig 3: Detaching Tabs B Of Cover From Remote Transmitter
    G09077095Courtesy of MAZDA MOTORS CORP.
  4. Turn the screwdriver in the direction of arrow (2) shown in the figure below to detach tabs B of the cover from the remote transmitter.
  5. Remove the cover.
  6. Remove the cap and the battery from the remote transmitter.

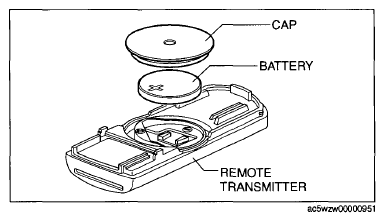

    Fig 4: Cap And Battery From Remote Transmitter
    G09077096Courtesy of MAZDA MOTORS CORP.
