Active Driving Display Removal/Installation: Notes

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the battery. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.5T] .) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)] .) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.5 (WITHOUT CYLINDER DEACTIVATION)] .)
  3. Disconnect the brake pipes from the master cylinder. (See MASTER CYLINDER REMOVAL/INSTALLATION .)
  4. Disconnect the clutch reserve hose from the master cylinder. (MTX) (See CLUTCH MASTER CYLINDER REMOVAL/INSTALLATION [C66M-R] .)
  5. Remove the following parts:
    1. Side wall (driver side) (See SIDE WALL REMOVAL/INSTALLATION .)
    2. Front heat duct (LH) (See FRONT HEAT DUCT REMOVAL/INSTALLATION .)
    3. Brake pedal (See BRAKE PEDAL REMOVAL/INSTALLATION .)
    4. Clutch pedal (MTX) (See CLUTCH PEDAL REMOVAL/INSTALLATION [C66M-R] .)
    5. Meter hood No. 2 (See METER HOOD REMOVAL/INSTALLATION .)
  6. To prevent scratches, apply protective tape to the active driving display lens.
    CAUTION:
    • When removing the active driving display, the active driving display lens could contact the dashboard panel frame and scratch or damage the active driving display lens. When removing the active driving display, apply protective tape to the active driving display lens before performing the servicing.

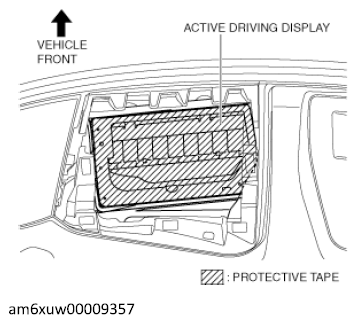

    Fig 1: Applying Protective Tape To Active Driving Display Lens
    G12237571Courtesy of MAZDA MOTORS CORP.
  7. Remove the nuts.

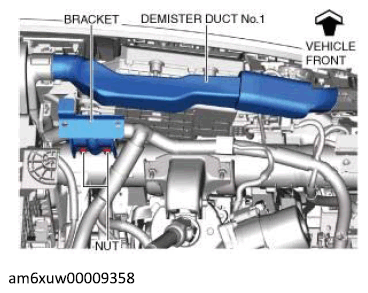

    Fig 2: Demister Duct No. 1, Bracket And Nuts
    G12237572Courtesy of MAZDA MOTORS CORP.
  8. Remove the bracket.
  9. Remove the demister duct No. 1.
  10. Remove the bolts.

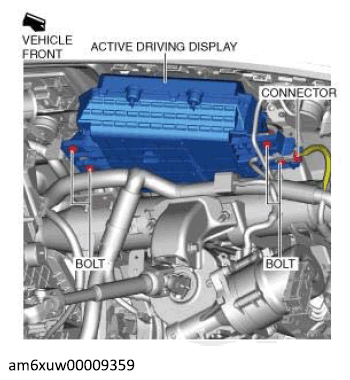

    Fig 3: Active Driving Display, Connector And Bolts
    G12237573Courtesy of MAZDA MOTORS CORP.
  11. Disconnect the connector.
  12. Tilt the active driving display in the direction of the arrow shown in the figure below.

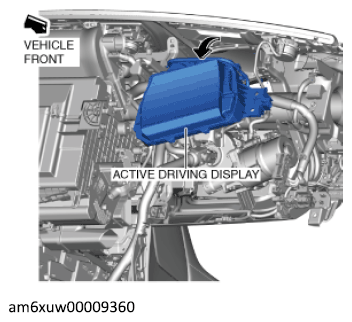

    Fig 4: Tilting Active Driving Display
    G12237574Courtesy of MAZDA MOTORS CORP.
  13. Move the active driving display in the direction of the arrow shown in the figure below.

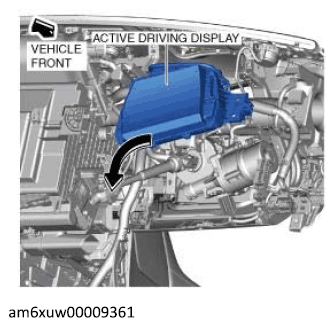

    Fig 5: Moving Active Driving Display
    G12237575Courtesy of MAZDA MOTORS CORP.
  14. Move the active driving display in the direction of the arrow shown in the figure below and remove it.

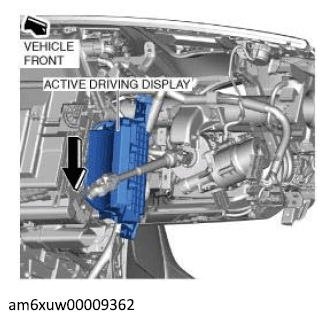

    Fig 6: Moving Active Driving Display
    G12237576Courtesy of MAZDA MOTORS CORP.
  15. Install in the reverse order of removal.
  16. After installation, add brake fluid, bleed the air, and inspect for fluid leakage. (See BRAKE FLUID AIR BLEEDING .)
