Quick Diagnostic Chart

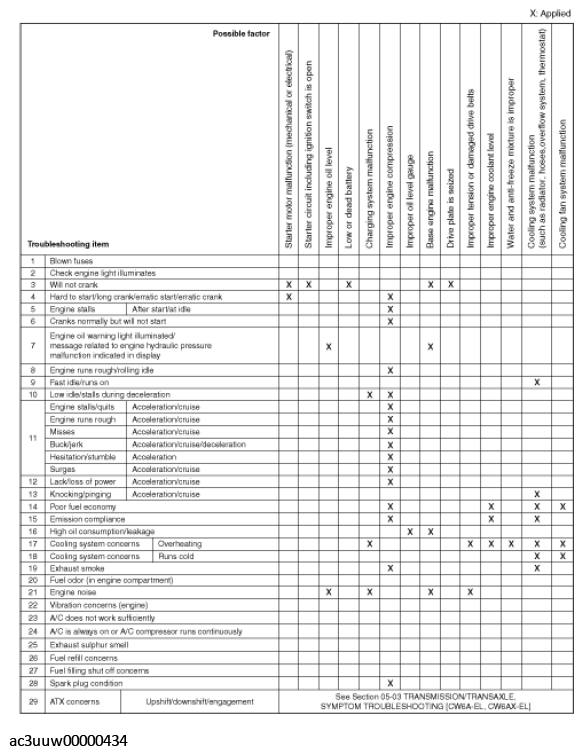

Fig 1: Quick Diagnostic Chart (SKYACTIV-G 2.0; 1 Of 8)

Courtesy of MAZDA MOTORS CORP.

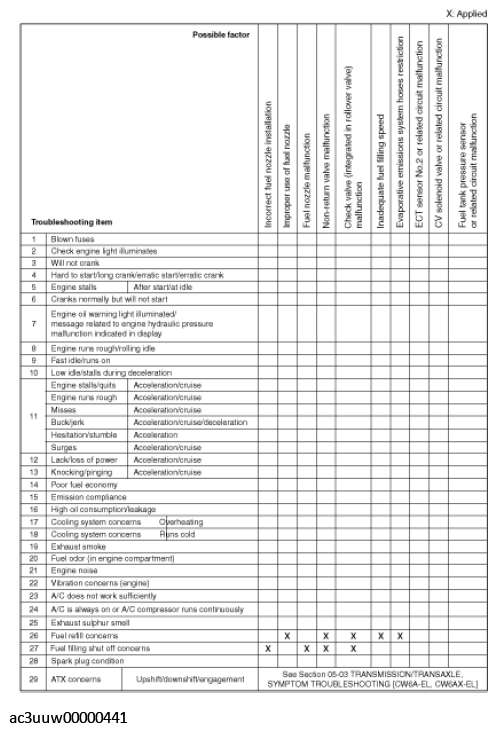

Fig 2: Quick Diagnostic Chart (SKYACTIV-G 2.0; 2 Of 8)

Courtesy of MAZDA MOTORS CORP.

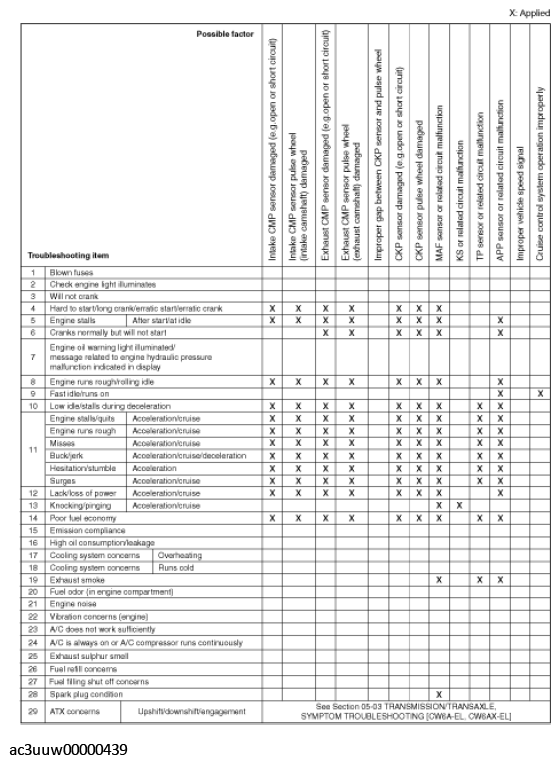

Fig 3: Quick Diagnostic Chart (SKYACTIV-G 2.0; 3 Of 8)

Courtesy of MAZDA MOTORS CORP.

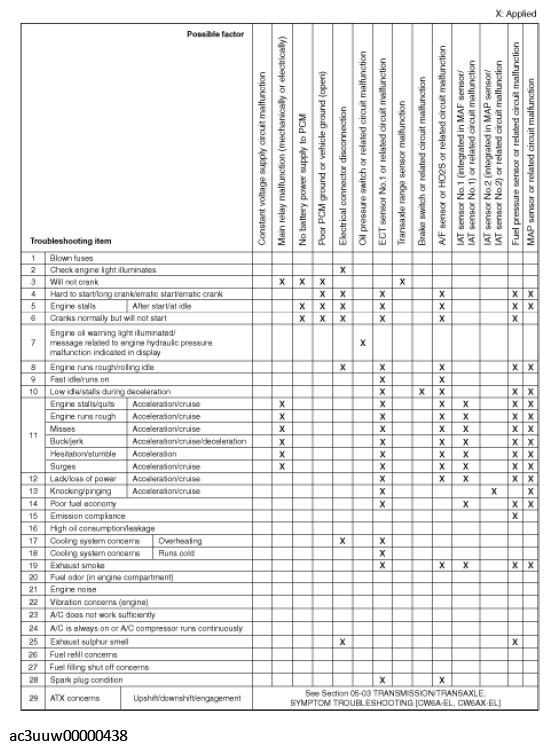

Fig 4: Quick Diagnostic Chart (SKYACTIV-G 2.0; 4 Of 8)

Courtesy of MAZDA MOTORS CORP.

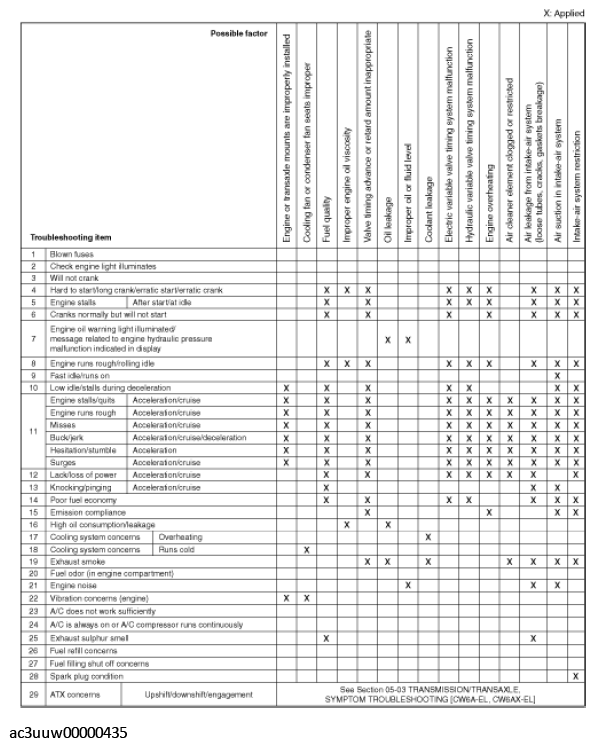

Fig 5: Quick Diagnostic Chart (SKYACTIV-G 2.0; 5 Of 8)

Courtesy of MAZDA MOTORS CORP.

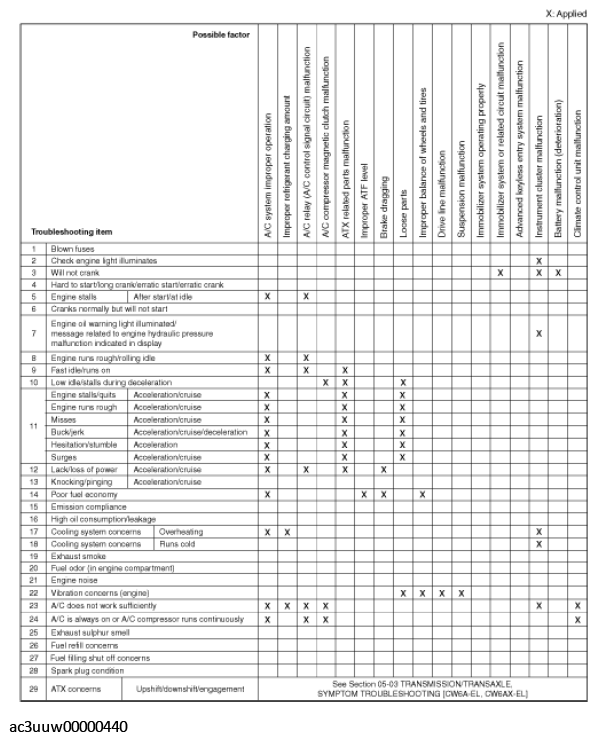

Fig 6: Quick Diagnostic Chart (SKYACTIV-G 2.0; 6 Of 8)

Courtesy of MAZDA MOTORS CORP.

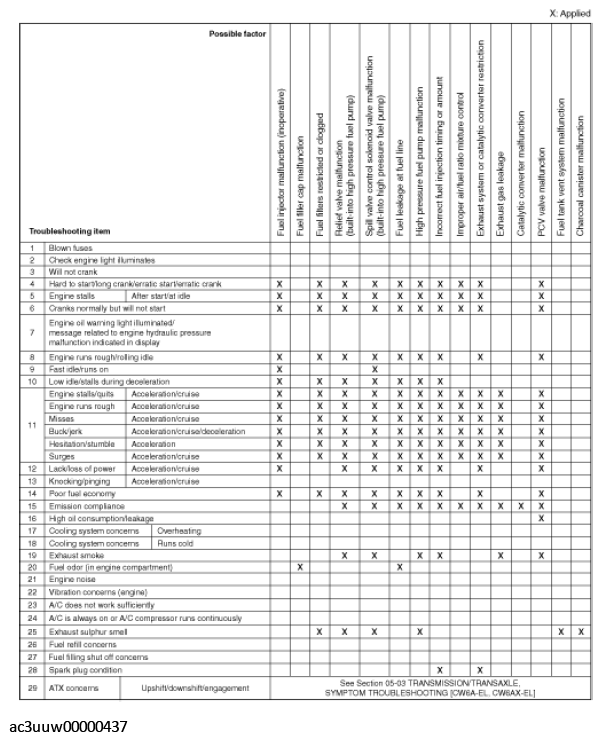

Fig 7: Quick Diagnostic Chart (SKYACTIV-G 2.0; 7 Of 8)

Courtesy of MAZDA MOTORS CORP.

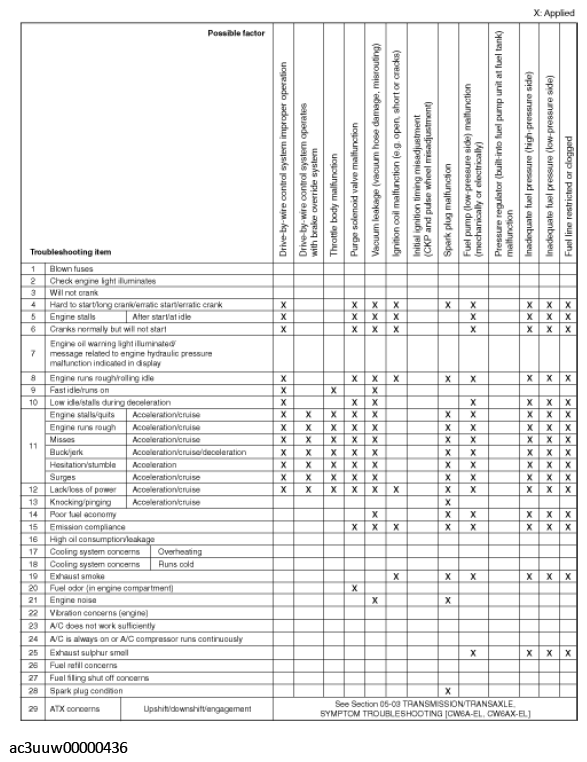

Fig 8: Quick Diagnostic Chart (SKYACTIV-G 2.0; 8 Of 8)

Courtesy of MAZDA MOTORS CORP.
