Fuel Pump Unit Disassembly/Assembly: 2WD

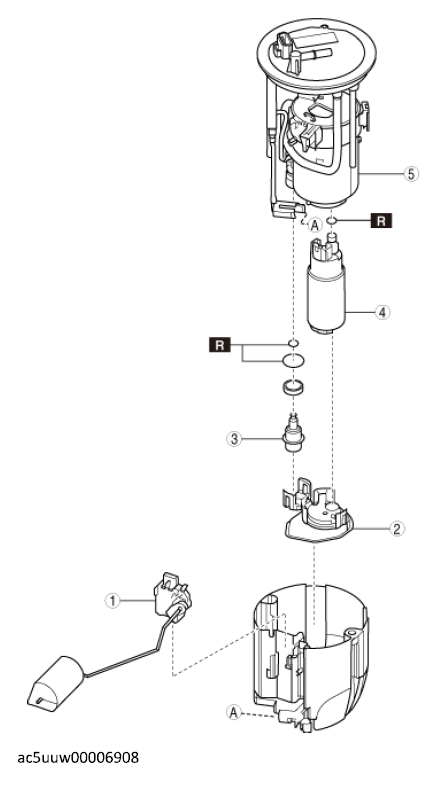

Fig 1: Fuel Pump Unit Components (2WD)

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Fuel gauge sender unit
2	Fuel filter (low-pressure)
3	Pressure regulator
4	Fuel pump
5	Fuel filter (high-pressure)
