Fuel Tank Removal/Installation: 2WD: Notes
- Level the vehicle.
- Complete the "BEFORE SERVICE PRECAUTION". (See Before Service Precaution .)
- Drain the fuel. (See Fuel Draining Procedure .)
- Remove the rear seat cushion. (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)

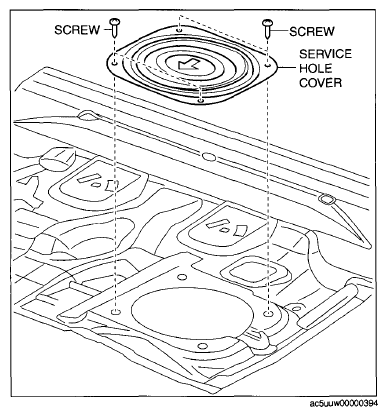

- Remove the service hole cover.
- Disconnect the following parts:
- Fuel pump unit connector
- Quick release connector (See Quick Release Connector (Fuel System) Removal/Installation .)
- Remove the floor under cover. (See FLOOR UNDER COVER REMOVAL/INSTALLATION .)
- Disconnect the HO2S connector.
- Remove the TWC and HO2S as a single unit. (See Exhaust System Removal/Installation .)
- Remove in the order indicated in the table.
- Install in the reverse order of removal.

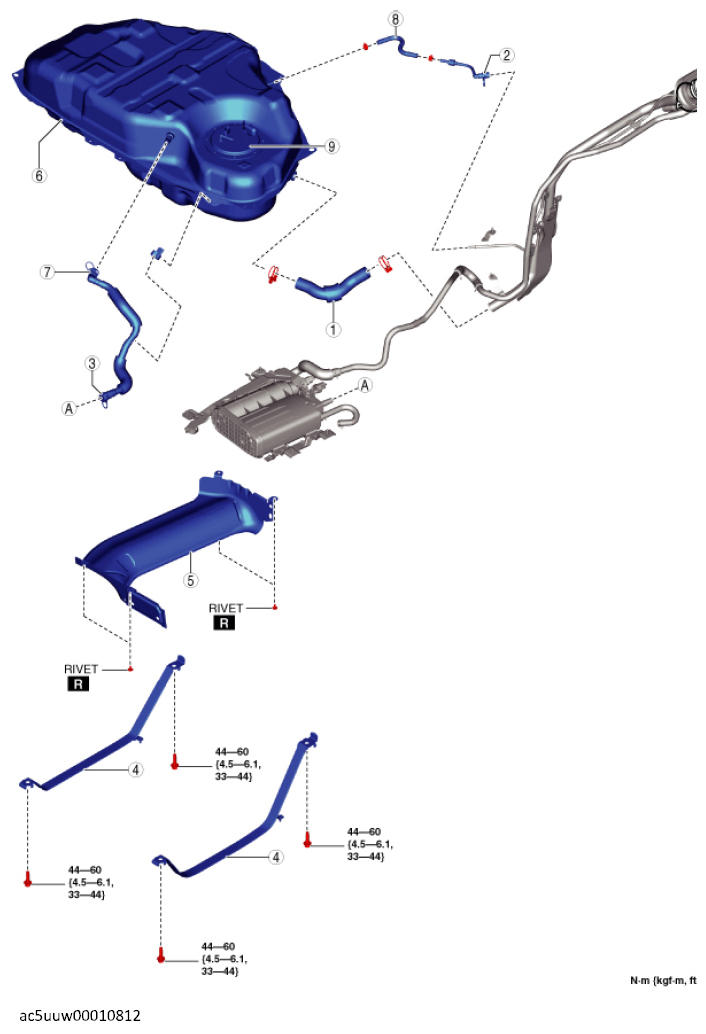

- Complete the "AFTER SERVICE PRECAUTION". (See After Service Precaution .)COMPONENT DESCRIPTION
1 Joint hose
(See Joint hose installation note .)2 Breather pipe
(See Quick Release Connector (Fuel System) Removal/Installation .)3 Evaporative hose (charcoal canister side)
(See Quick Release Connector (Fuel System) Removal/Installation .)4 Fuel tank strap 5 Fuel tank insulator
(See Fuel tank insulator removal note .)6 Fuel tank
(See Fuel tank removal note .)7 Evaporative hose (fuel tank side)
(See Quick Release Connector (Fuel System) Removal/Installation .)8 Breather hose
(See Breather hose installation note .)9 Fuel pump unit
(See Fuel Pump Unit Removal/Installation .)
