Inspection Using An Oscilloscope (Reference)

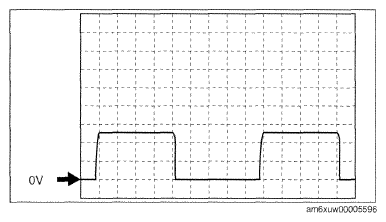

Fig 1: Checking Power Window Motor Wave Pattern Using Oscilloscope

Courtesy of MAZDA MOTORS CORP.

• Terminal: D, F(+) ↔ ground (-)
• Oscilloscope setting: 2 V/DIV (Y), 1 ms/DIV (X), DC range
