Battery Clamp Installation Note
Battery Clamp Installation Note
Install the battery clamp as shown in the figure.

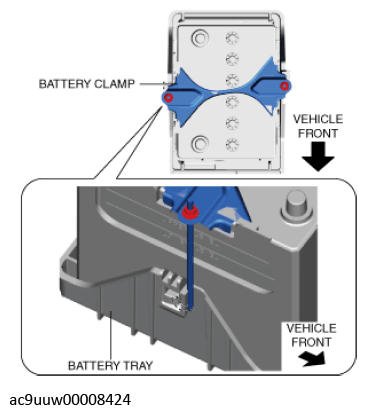

Fig 1: Battery Tray And Battery Clamp
Courtesy of MAZDA MOTORS CORP.
