Charging System Location Index

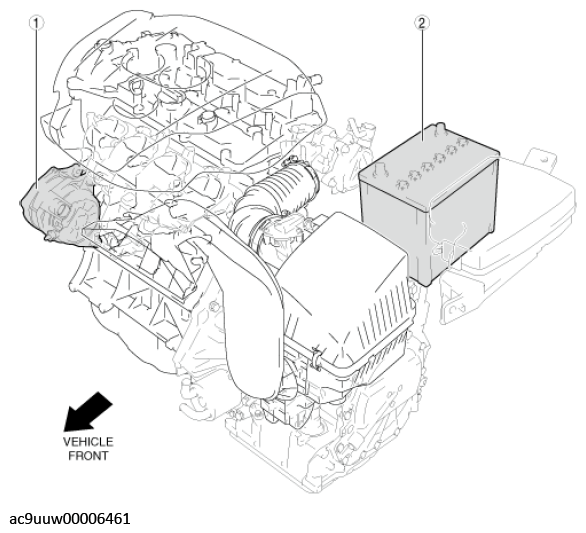

Fig 1: Charging System Related Components

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Generator (See GENERATOR REMOVAL/INSTALLATION .) (See GENERATOR INSPECTION .) (See GENERATOR DISASSEMBLY/ASSEMBLY .)
2	Battery (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .) (See BATTERY REMOVAL/INSTALLATION .) (See BATTERY INSPECTION .) (See BATTERY RECHARGING .)
