Brush Assembly Note

CAUTION:
  • Melt the solder quickly, otherwise the diodes (rectifier) and brush holder will be damaged by excessive heat.

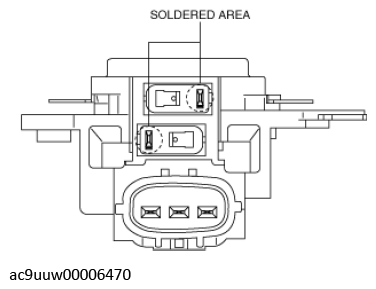

Fig 1: Caution - Melt Solder Quickly, Otherwise Diodes (Rectifier) And Brush Holder Will Be Damaged By Excessive Heat
G12244503Courtesy of MAZDA MOTORS CORP.
  1. Press the brush into the brush holder with it facing in the direction shown in the figure.

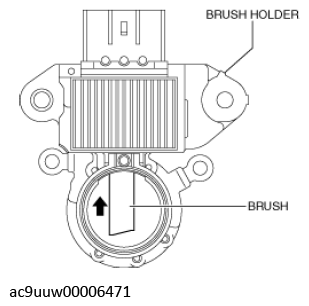

    Fig 2: Pressing Brush Into Brush Holder
    G12244505Courtesy of MAZDA MOTORS CORP.
  2. Solder the brush to the brush holder.
