Engine Removal/Installation: AWD

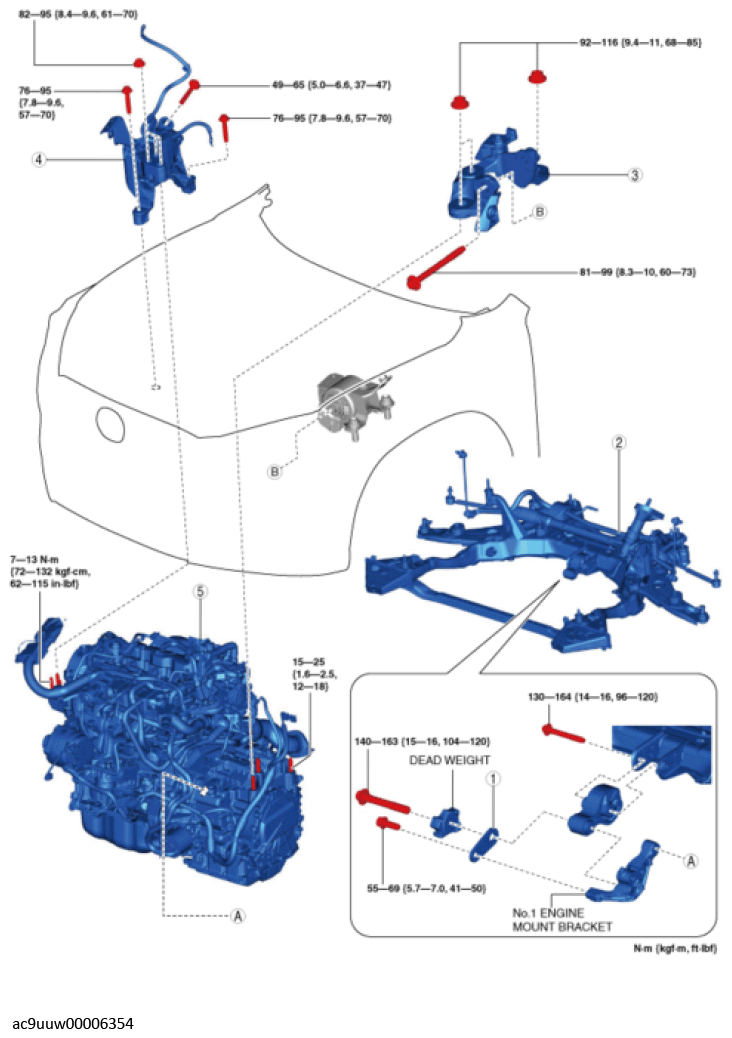

Fig 1: Engine Components With Torque Specification (AWD)

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Bracket plate (See Engine Mount Installation Note .)
2	No. 1 engine mount rubber, front crossmember component (See No. 1 Engine Mount Rubber, Front Crossmember Component Removal Note .) (See Engine Mount Installation Note .)
3	No. 4 engine mount bracket (See No. 3 Engine Mount, No. 4 Engine Mount Bracket Removal Note .) (See Engine Mount Installation Note .)
4	No. 3 engine mount (See No. 3 Engine Mount, No. 4 Engine Mount Bracket Removal Note .) (See Engine Mount Installation Note .)
5	Engine, transaxle
