Coil Spring Installation Note

  1. Compress the coil spring using the SST.

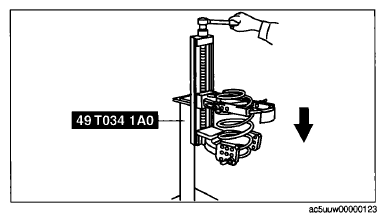

    Fig 1: Compressing Coil Spring Using SST
    G09074666Courtesy of MAZDA MOTORS CORP.
  2. Install the front shock absorber so that the lower end of the coil spring is seated on the step of the lower spring seat.
