Power Window Regulator Disassembly/Assembly: Notes

  1. Disassemble in the order indicated in the table.

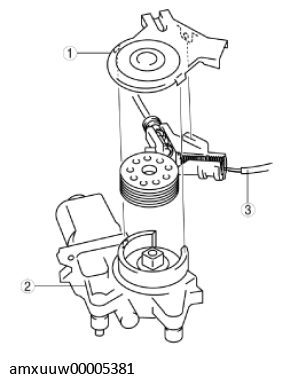

    Fig 1: Identifying Power Window Regulator Components
    G11275140Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Cover
    (See Cover Removal Note .)
    2 Power window motor
    3 Frame
  2. Assemble in the reverse order of disassembly.
CAUTION:
  • When installing the power window motor, be careful that the cable does not become unwounded from the drum.
