Power Window System Initialization Procedure

NOTE:
  • Initial setting must be performed after performing any of the following procedures.
  1. Close the door.
  2. Close the convertible top and secure the top lock.
  3. Switch the ignition ON. (engine on or off)
  4. Fully close the retractable hardtop. (retractable hardtop)
  5. Operate the driver's side switch on the power window main switch to fully open the door glass (driver-side).

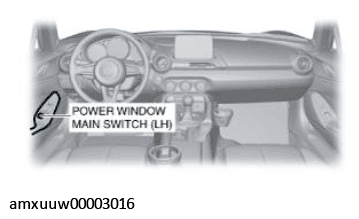

    Fig 1: Identifying Power Window Main Switch (LH)
    G11275147Courtesy of MAZDA MOTORS CORP.
  6. Operate the power window main switch (LH) on the power window main switch and keep the door glass (driver-side) fully closed for approx. 2 sec.
  7. Operate the power window main switch (RH) or the power window subswitch to fully open the door glass. (passenger-side)

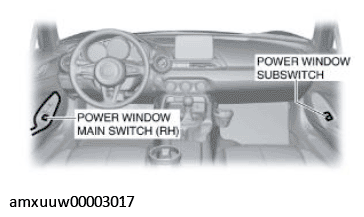

    Fig 2: Identifying Power Window Subswitch And Power Window Main Switch (RH)
    G11275148Courtesy of MAZDA MOTORS CORP.
  8. Operate the power window main switch (RH) or the power window subswitch and keep the door glass (passenger-side) fully closed for approx. 2 sec.
