Relay Location

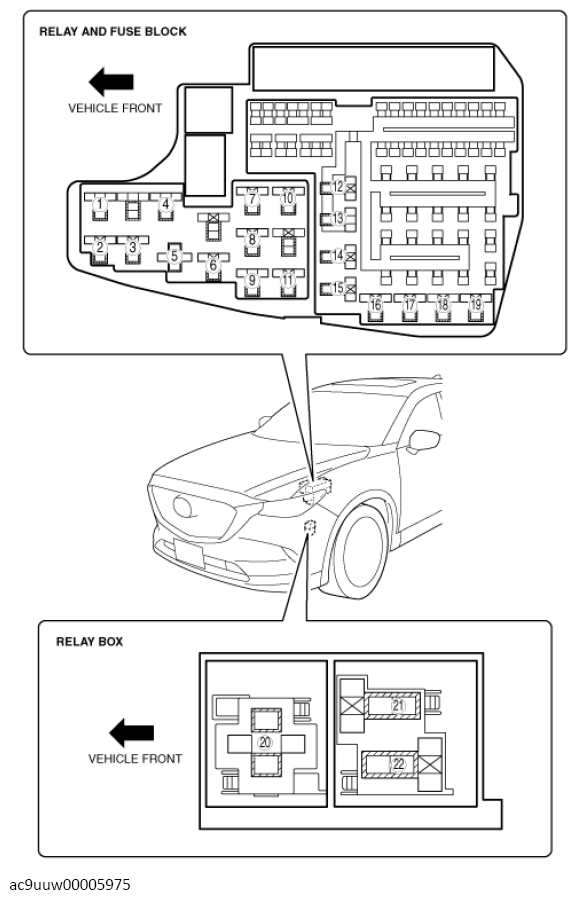

FUSE BLOCK AND RELAY BOX RELAY IDENTIFICATION
| Relay Number | Relay Description |
|---|---|
| 1 | Main relay |
| 2 | Front fog light relay |
| 3 | Rear window defogger relay |
| 4 | Headlight LO relay No. 2 |
| 5 | Front blower relay |
| 6 | Electric variable valve timing relay |
| 7 | Rear blower relay |
| 8 | ACC relay |
| 9 | Brake Light Relay |
| 10 | DRL relay |
| 11 | Starter relay |
| 12 | IG1 relay |
| 13 | Headlight LO relay No. 1 |
| 14 | Fuel injector relay |
| 15 | Fuel pump relay |
| 16 | Headlight HI relay |
| 17 | A/C relay |
| 18 | Heated Steering Wheel Relay |
| 19 | TNS relay |
| 20 | Cooling fan relay |
| 21 | Windshield wiper de-icer relay |
| 22 | Horn Relay |
