Telematics Communication Unit Removal/Installation: Notes

WARNING:
  1. Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  2. Remove the following parts:
    1. A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION (US) .)
    2. Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    3. Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    4. Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    5. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
    6. Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
    7. Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION (US) .)
    8. Driver-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    9. Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION (US) .)
    10. Driver-side knee air bag module (See KNee AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.] .)
    11. Shift lever knob (MTX)
    12. Selector lever knob (ATX) (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION .)
    13. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION .)
    14. Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
    15. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
    16. Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)
    17. Cup holder (See CUP HOLDER REMOVAL/INSTALLATION .)
    18. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
    19. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION (US) .)
    20. Center lower panel (See LOWER PANEL REMOVAL/INSTALLATION (US) .)
    21. Driver-side air bag module (See DRIVER-SIDE AIR BAG MODULE REMOVAL [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.] .) (See DRIVER-SIDE AIR BAG MODULE INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.] .)
    22. Steering wheel (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION (US) .)
    23. Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION .)
    24. Lower column cover (See COLUMN COVER REMOVAL/INSTALLATION .)
    25. Clock spring (See CLOCK SPRING REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.] .)
    26. Light switch (See LIGHT SWITCH REMOVAL/INSTALLATION (US) .)
    27. Wiper and washer switch (See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION (US) .)
    28. Joint cover (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION (US) .)
    29. Steering shaft (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION (US) .)
    30. Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION .)
    31. Center speaker grille (See SPEAKER GRILLE REMOVAL/INSTALLATION .)
    32. Center display component (See CENTER DISPLAY REMOVAL/INSTALLATION .)
    33. Connectivity master unit (CMU) (See CONNECTIVITY MASTER UNIT (CMU) REMOVAL/INSTALLATION .)
    34. Audio panel (with audio panel) (See AUDIO PANEL REMOVAL/INSTALLATION .)
    35. CD player (with CD player)
    36. Climate control unit (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER (US)] .) (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER (US)] .)
    37. Dashboard side cover (See DASHBOARD SIDE COVER REMOVAL/INSTALLATION .)
    38. Rear heat duct No. 1 (See REAR HEAT DUCT REMOVAL/INSTALLATION (US) .)
    39. Driver-side front heat duct No. 2 (See FRONT HEAT DUCT REMOVAL/INSTALLATION (US) .)
    40. Windshield wiper arm and blade (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
    41. Cowl grille (See COWL GRILLE REMOVAL/INSTALLATION .)
    42. Dashboard (See DASHBOARD REMOVAL (US) .) (See DASHBOARD INSTALLATION (US) .)

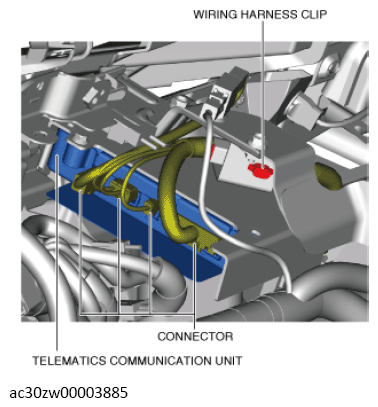

  3. Disconnect the connectors.
    G13561230Courtesy of MAZDA MOTORS CORP.
  4. Remove the wiring harness clip.
  5. Remove the bolts.

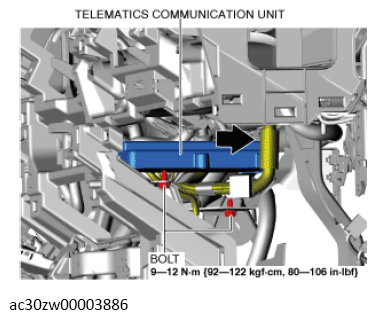

    Fig 1: Telematics Communication Unit And Bolts With Torque Specification
    G13561231Courtesy of MAZDA MOTORS CORP.
  6. Move the telematics communication unit in the direction of the arrow shown in the illustration.
  7. Remove the telematics communication unit and the bracket as a single unit. (See TELEMATICS COMMUNICATION UNIT INSTALLATION NOTE .)
  8. Remove the bolts.

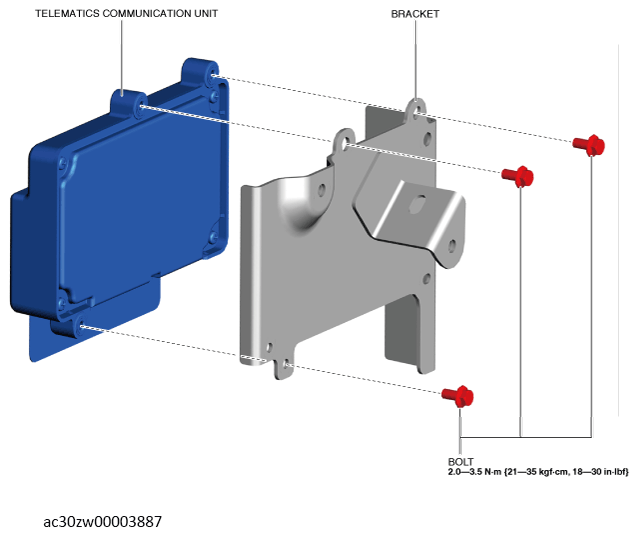

    Fig 2: Telematics Communication Unit, Bracket And Bolts With Torque Specification
    G13561232Courtesy of MAZDA MOTORS CORP.
  9. Remove the telematics communication unit.
  10. Install in the reverse order of removal.
  11. If the telematics communication unit is replaced, perform the following procedure.
    1. Switch the ignition ON (engine off) to complete global central configuration (GCC) for the telematics communication unit.
    2. Clear the DTC. (See CLEARING DTC .)
    3. Cancel connected vehicle maintenance mode. (See SERVICE CAUTIONS FOR VEHICLES WITH TELEMATICS COMMUNICATION SYSTEM (US) .)
    4. Perform the telematics communication unit initial setting. (See TELEMATICS COMMUNICATION UNIT INITIAL SETTING .)
    5. Switch the ignition OFF and wait for 15 min or more.
      NOTE:
      • It takes approx. 15 m into complete the communication processing for the telematics communication system.
