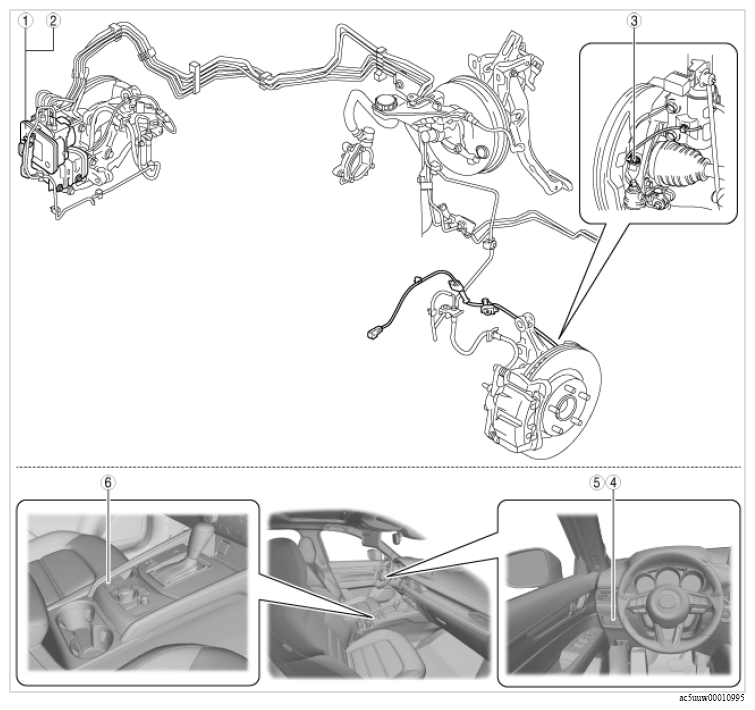

| 1 |
DSC HU/CM
(See DSC HU/CM REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (VIN L)] .)
(See DSC HU/CM REMOVAL/INSTALLATION [SKYACTIV-G 2.5 (VIN M)] .)
(See DSC HU/CM REMOVAL/INSTALLATION [SKYACTIV-G 2.5T (VIN Y)] .)
(See DSC HU/CM REMOVAL/INSTALLATION [SKYACTIV-D 2.2] .)
(See DSC RELATED PARTS SENSOR INITIALIZATION PROCEDURE .)
(See DSC HU/CM INSPECTION .) |
| 2 |
Brake fluid pressure sensor (built-into DSC HU/CM)
(See BRAKE FLUID PRESSURE SENSOR INSPECTION .)
(See DSC RELATED PARTS SENSOR INITIALIZATION PROCEDURE .) |
| 3 |
Front ABS wheel-speed sensor
(See FRONT ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION .)
(See FRONT ABS WHEEL-SPEED SENSOR INSPECTION .) |
| 4 |
TCS OFF switch (Without Off-Road Traction Assist)
(See
TCS OFF SWITCH REMOVAL/INSTALLATION (WITHOUT OFF-ROAD TRACTION ASSIST) .)
(See
TCS OFF SWITCH INSPECTION (WITHOUT OFF-ROAD TRACTION ASSIST) .) |
| 5 |
Off-Road Traction Assist switch (With Off-Road Traction Assist)
(See OFF-ROAD TRACTION ASSIST SWITCH REMOVAL/INSTALLATION [WITH OFF-ROAD TRACTION ASSIST] .)
(See OFF-ROAD TRACTION ASSIST SWITCH INSPECTION [WITH OFF-ROAD TRACTION ASSIST] .) |
| 6 |
AUTO HOLD switch
(See AUTO HOLD SWITCH REMOVAL/INSTALLATION .)
(See AUTO HOLD SWITCH INSPECTION .) |
