Rear Console-up

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the rear console-up. (See REAR CONSOLE-UP REMOVAL/INSTALLATION .)

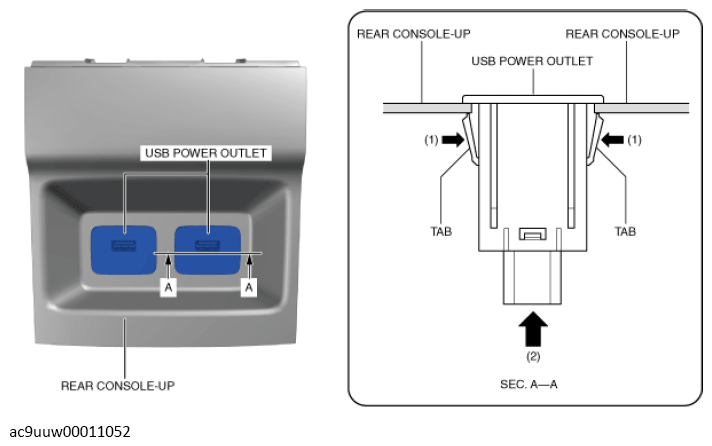

  3. While pressing the tabs of the USB power outlet in the directions of arrows (1) shown in the illustration, press out the USB power outlet in the direction of arrow (2) and detach the tabs of the USB power outlet from the rear console-up.
    G13449812Courtesy of MAZDA MOTORS CORP.
  4. Remove the USB power outlet.
  5. Install in the reverse order of removal.
