Starting System Location Index

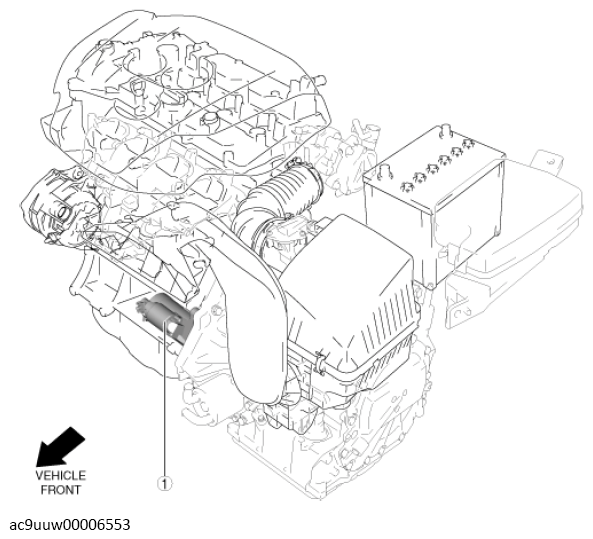

G13570049Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION

1 Starter
(See STARTER REMOVAL/INSTALLATION .)
(See STARTER INSPECTION .)
(See STARTER DISASSEMBLY/ASSEMBLY .)
