Tweeter Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  2. Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION .)
  3. Move the inner garnish in the order of arrows (1) and (2) shown in the figure and detach the tabs from the inner garnish.

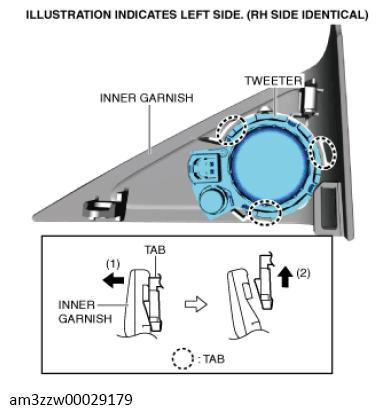

    G13718370Courtesy of MAZDA MOTORS CORP.
  4. Remove the tweeter from the inner garnish.

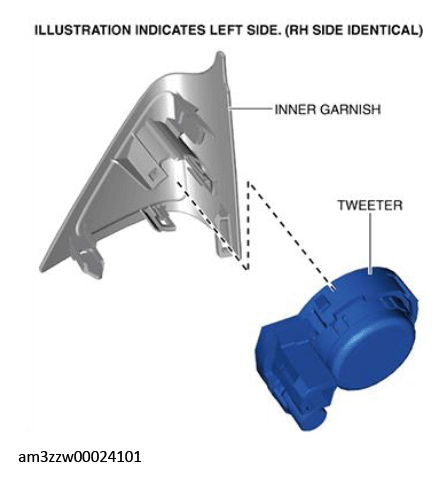

    G13179870Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
