Liftgate Lock Striker Removal/Installation: Notes

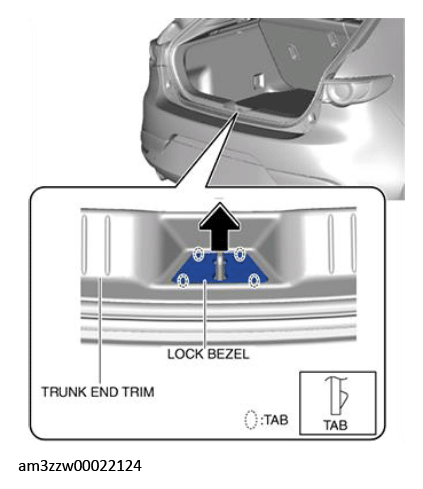

Remove the lock bezel in the direction of the arrow shown in the figure while detaching tabs.

Courtesy of MAZDA MOTORS CORP.
Remove the bolts, then remove the liftgate lock striker. (See LIFTGATE LOCK STRIKER INSTALLATION NOTE .)

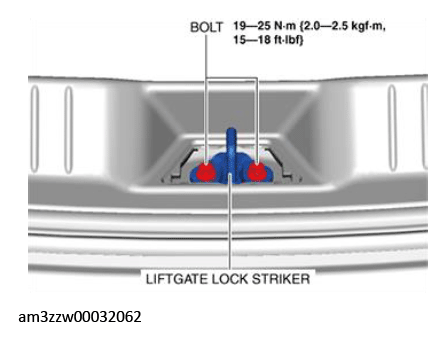

Fig 1: Liftgate Lock Striker Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
