Rear Console Disassembly/Assembly: Notes

  1. Disassemble in the order indicated in the table.

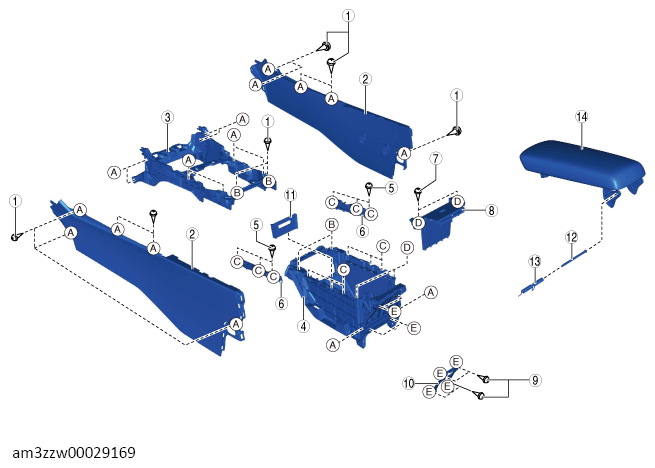

    G13718005Courtesy of MAZDA MOTORS CORP.
    PARTS DESCRIPTION

    1 Screw
    2 Console panel
    (See CONSOLE PANEL REMOVAL NOTE .)
    3 Rear console bracket (front)
    4 Rear console box
    5 Screw
    6 Bracket cover
    7 Screw
    8 Rear console parts
    9 Screw
    10 Rear console bracket (rear)
    11 Plate
    12 Pin
    13 Spring
    14 Rear console lid
  2. Assemble in the reverse order of disassembly.
