Glass Panel Removal/Installation: Notes

  1. Fully open the sunshade.
  2. Fully close the glass panel.
  3. Remove the screws.

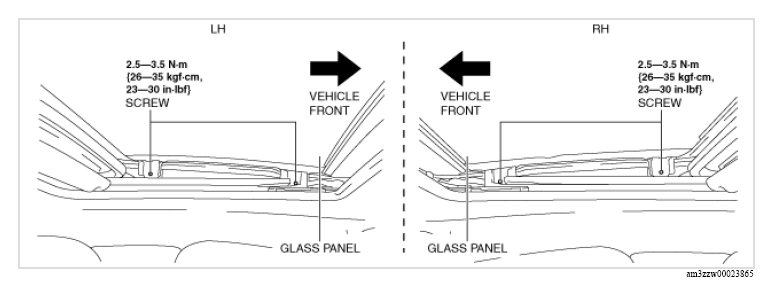

    Fig 1: Glass Panel Screws With Torque Specification
    G13179196Courtesy of MAZDA MOTORS CORP.

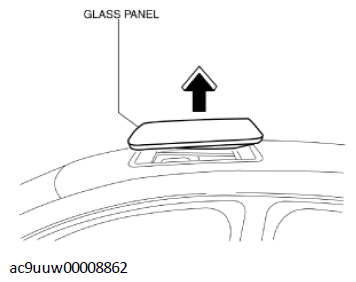

  4. Remove the glass panel in the direction of the arrow shown in the figure.
    G11426712Courtesy of MAZDA MOTORS CORP.
  5. Partially peel back the weatherstrip from the glass panel. (See WEATHERSTRIP INSTALLATION NOTE .)
  6. Install in the reverse order of removal.
