Front Guide Disassembly Note

CAUTION:

If the front guide is assembled to a wrong position, the glass panel may stop at the wrong position and the part may be damaged.

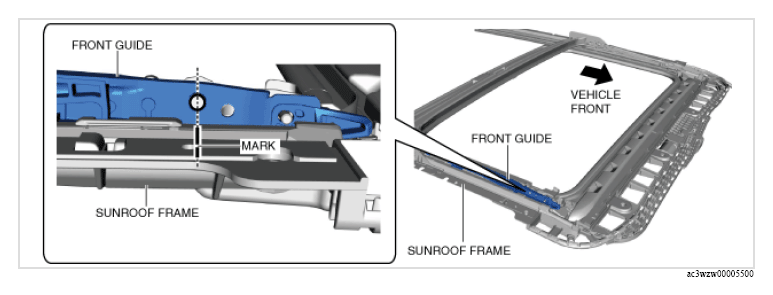

Mark the position shown in the figure for correct positioning.

Courtesy of MAZDA MOTORS CORP.
