Active driving display setting

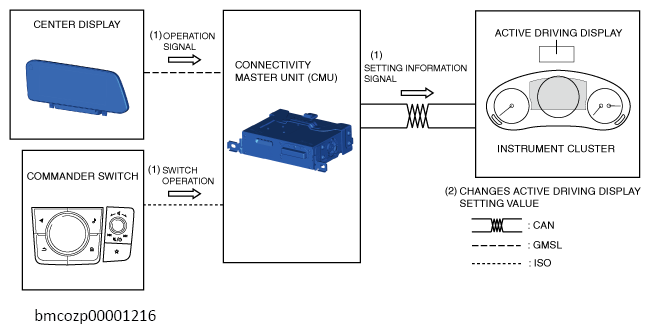

  1. When an operation signal is received/switch operation is detected (1), the CMU sends (1) a setting information signal to the instrument cluster based on the information from the user operations.
  2. The instrument cluster changes (2) the setting value of the active driving display based on the setting information signal.
    G13561514Courtesy of MAZDA MOTORS CORP.
