Indicator Unit Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  2. Remove the sensor cover. (See SENSOR COVER REMOVAL/INSTALLATION .)
  3. Disconnect the connector.

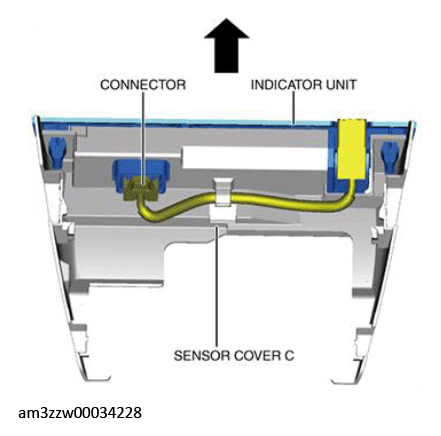

    G13179960Courtesy of MAZDA MOTORS CORP.
  4. Move the indicator unit in the direction of the arrow shown in the figure and remove it from the sensor cover C.
  5. Remove the screw.

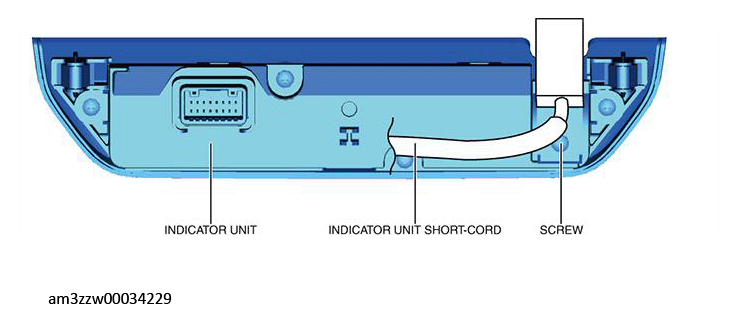

    G13179961Courtesy of MAZDA MOTORS CORP.
  6. Remove the indicator unit short-cord.
  7. Install in the reverse order of removal.
