Keyless Beeper Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
  3. Remove the cowl grille. (See COWL GRILLE REMOVAL/INSTALLATION .)

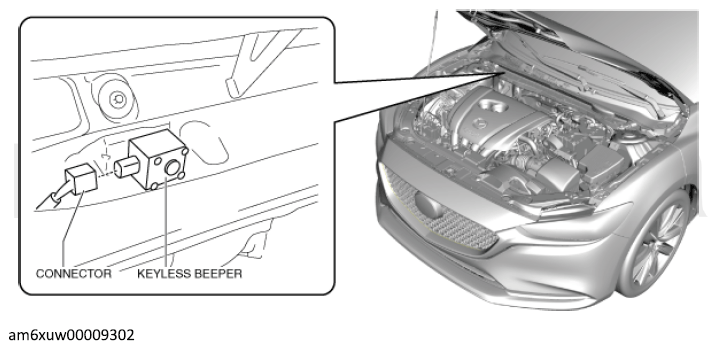

  4. Disconnect the connector.
    G12236259Courtesy of MAZDA MOTORS CORP.

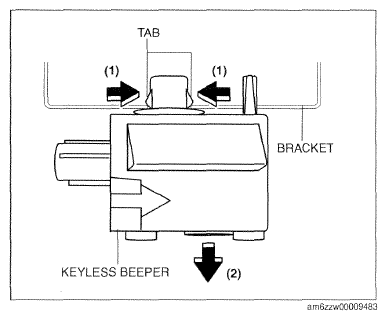

  5. Pull the keyless beeper in the direction of the arrow (2) shown in the figure while pressing the keyless beeper tab in the direction of the arrow (1) shown in the figure, detach the keyless beeper tab and bracket, and then remove the keyless beeper from the bracket.
    G09787821Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
