Rear Console Disassembly/Assembly: Notes
- Remove the upper panel component. (See UPPER PANEL REMOVAL/INSTALLATION .)
- Remove the upper console up. (See AUXILIARY JACK/USB PORT/SD CARD SLOT HUB REMOVAL/INSTALLATION .)

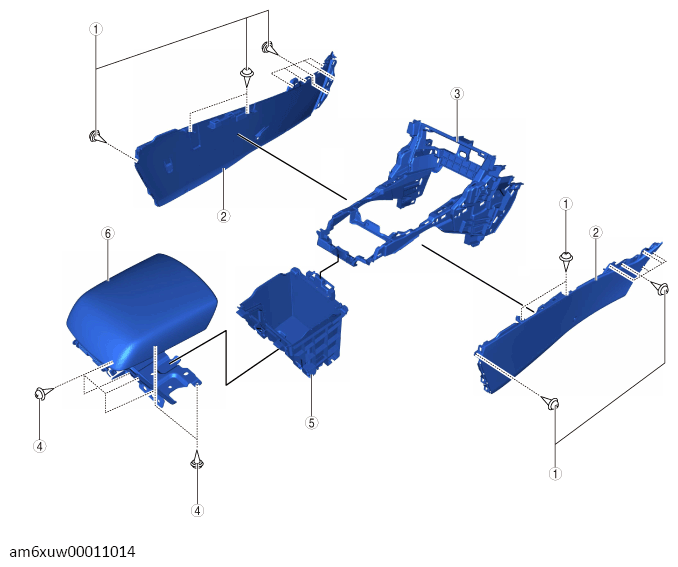

- Disassemble in the order indicated in the table.PARTS DESCRIPTION
1 Screw 2 Side panel
(See SIDE PANEL REMOVAL NOTE .)3 Rear console bracket 4 Screw 5 Rear console box 6 Rear console lid component - Assemble in the reverse order of disassembly.
