Auto-Dimming Rearview Mirror Removal/Installation

NOTE:

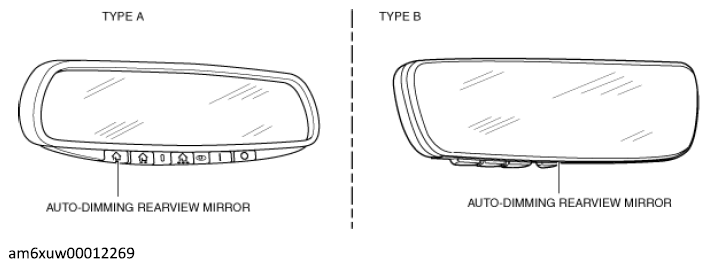

• There are two types of auto-dimming rearview mirror. Verify the auto-dimming rearview mirror shape before performing the procedures.

Courtesy of MAZDA MOTORS CORP.

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
2. Remove the sensor cover. (See SENSOR COVER REMOVAL/INSTALLATION .)

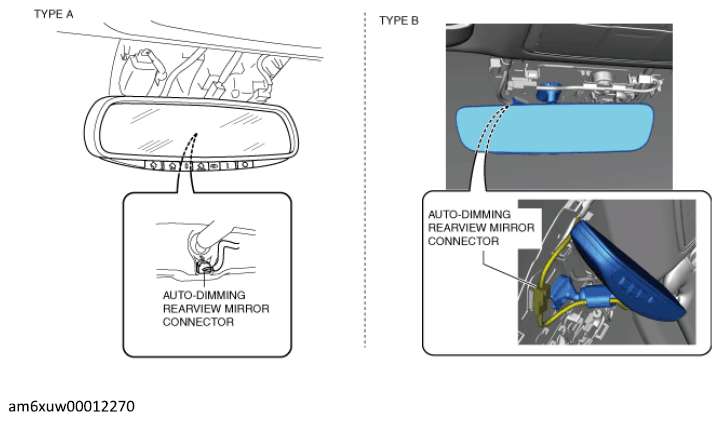

3. Disconnect the auto-dimming rearview mirror connector.

   Courtesy of MAZDA MOTORS CORP.

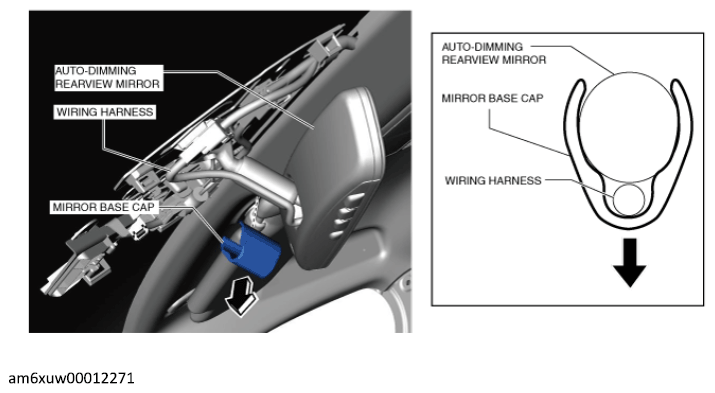

4. Move the mirror base cap in the direction of the arrow and remove it.

   Courtesy of MAZDA MOTORS CORP.

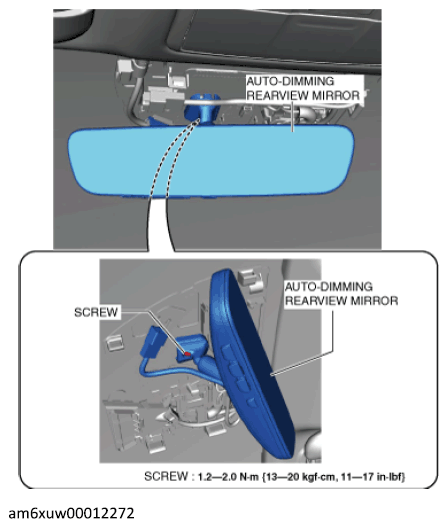

5. Loosen the screw.
   Fig 1: Auto-Dimming Rearview Mirror Screw With Torque Specification

   Courtesy of MAZDA MOTORS CORP.

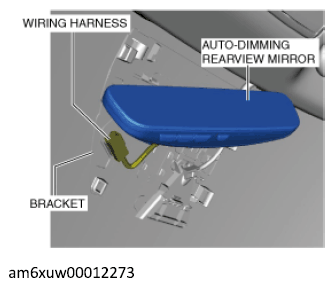

6. Remove the wiring harness from the bracket. (type B)

   Courtesy of MAZDA MOTORS CORP.

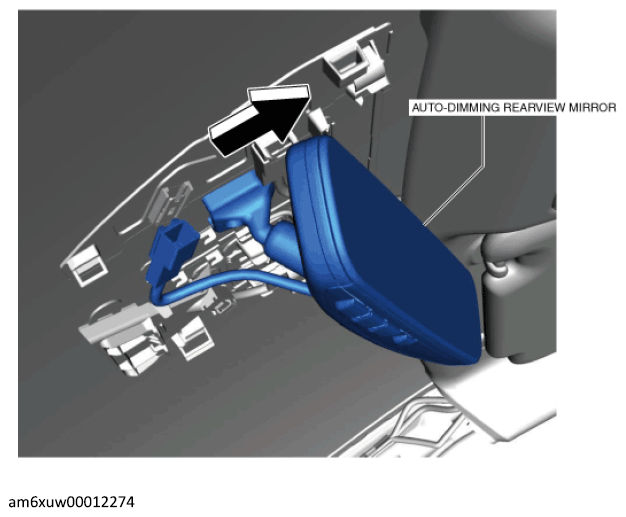

7. Remove the auto-dimming rearview mirror in the direction of the arrow shown in the figure.

   Courtesy of MAZDA MOTORS CORP.

8. Install in the reverse order of removal.
