Home >> Mazda >> 2021 >> 6 Signature >> Repair and Diagnosis >> Body & Frame >> Windows >> Glass/Windows/Mirrors >> Power Outer Mirror Removal/Installation >> Power Outer Mirror Installation Note

Power Outer Mirror Installation Note

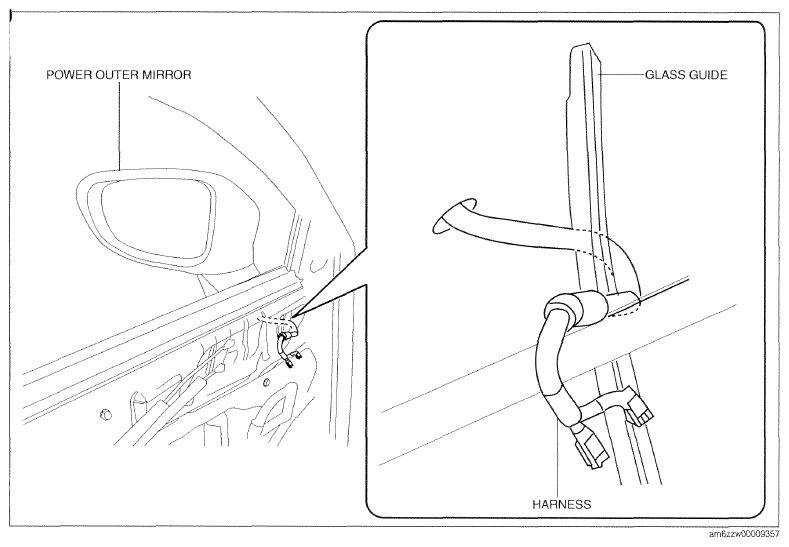

  1. If a wiring harness is mistakenly routed when installing a power outer mirror, it will interfere with the front door glass when opening/closing the front door glass, and could result in an open circuit. When routing the wiring harness, route it behind the glass guide.
G09787586Courtesy of MAZDA MOTORS CORP.
