Inspection Using an Oscilloscope (Reference)

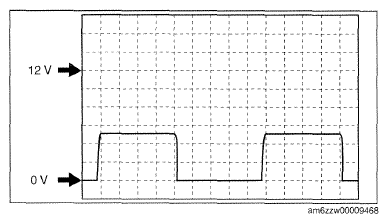

G09787576

Courtesy of MAZDA MOTORS CORP.

Terminal: 2D, 2F(+) → ground (-)
Oscilloscope setting: 2 V/DIV (Y), 1 ms/DIV (X), DC range
