Active Driving Display Disassembly/Assembly

CAUTION:
  • If the active driving display is hit forcefully during disassembly such as by being dropped, it could get damaged and the system may not operate normally. When disassembling the active driving display, perform the procedure on a workbench and clean cloth being careful not to drop it.
  1. Remove the active driving display short-cord. (See ACTIVE DRIVING DISPLAY SHORT-CORD REMOVAL/INSTALLATION .)

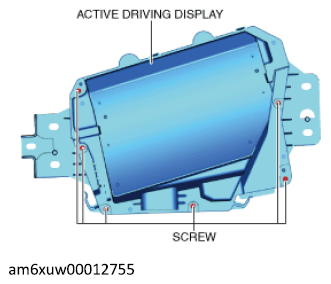

  2. Remove the screws.
    G12237577Courtesy of MAZDA MOTORS CORP.

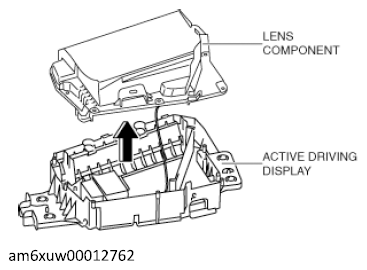

  3. Move the lens component in the direction of the arrow shown in the figure.
    G12237578Courtesy of MAZDA MOTORS CORP.

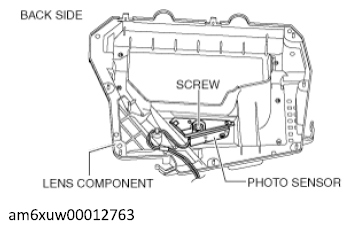

  4. Remove the screw.
    G12237579Courtesy of MAZDA MOTORS CORP.

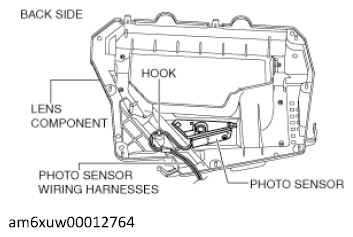

  5. Pull out the photo sensor wiring harnesses from the hooks.
    G12237580Courtesy of MAZDA MOTORS CORP.
  6. Remove the photo sensor.
  7. Assemble in the reverse order of disassembly.
