When using M-MDS

  1. Connect the M-MDS to the DLC-2.
  2. After vehicle identification, select the following from the M-MDS initialization screen.
    1. "Data logger"
    2. "Module"
    3. "IC"

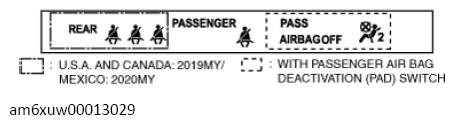

  3. Using the simulation function LCD_SEG, verify that the following warning/indicator lights are turned on.
    G13725729Courtesy of MAZDA MOTORS CORP.
