Center Display Disassembly/Assembly

WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Remove the connectivity master unit (CMU). (See CONNECTIVITY MASTER UNIT (CMU) REMOVAL/INSTALLATION .)

Disassemble in the order indicated in the table.

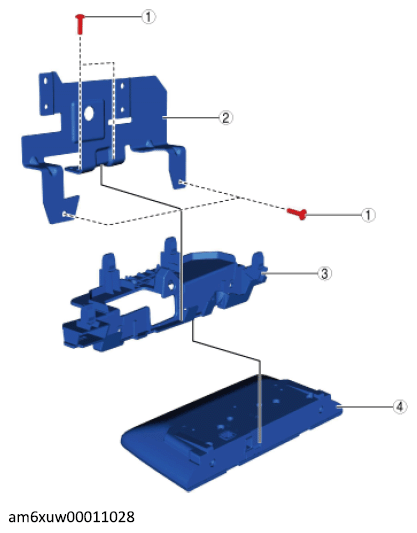

Fig 1: Center Display, Audio Panel, Bracket And Screw

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Screw
2	Bracket
3	Audio panel
4	Center display

Assemble in the reverse order of disassembly.
