Tweeter Removal/Installation

WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • If the procedure is performed while holding the tweeter cone, it could deform the cone causing a malfunction. Therefore, perform the procedure while holding any part other than the cone.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
  3. Disconnect the connector.

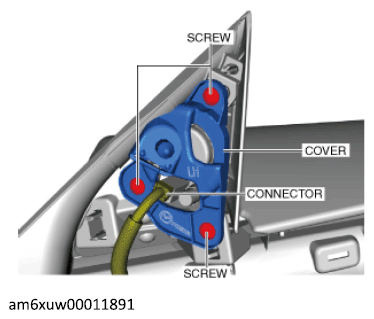

    Fig 1: Cover, Connector And Screws
    G12235167Courtesy of MAZDA MOTORS CORP.
  4. Remove the screws.
  5. Remove the cover.
  6. While pressing the front door trim in the direction of arrow (1) shown in the figure below, pull the tweeter in the direction of arrow (2) to detach the tweeter tabs from the front door trim.

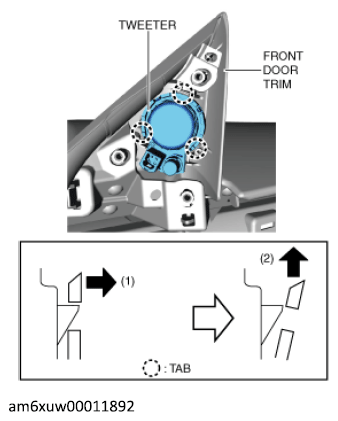

    Fig 2: Pressing Front Door Trim
    G12235168Courtesy of MAZDA MOTORS CORP.
  7. Install in the reverse order of removal.
