Front Brake Caliper Disassembly/Assembly: Notes

WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Brake fluid will damage painted surfaces. Be careful not to spill any on painted surfaces. In addition, if there is any brake fluid on the wiring harness, the wire insulation may corrode causing a malfunction such as a short circuit. If brake fluid gets on a painted surface or wiring harness, wash and flush it off completely with water immediately.

Disassemble in the order indicated in the table.

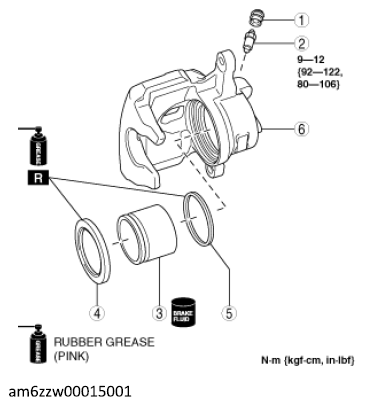

Fig 1: Front Brake Caliper Components With Torque Specification

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Bleeder cap
2	Bleeder screw
3	Piston (See Piston Disassembly Note .)
4	Dust seal
5	Piston seal
6	Caliper body

Assemble in the reverse order of removal.
