Rod Adjustment Note: Notes

WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Install the plate as shown in the figure below and verify that the clearance between the rod end and the plate is within the standard.

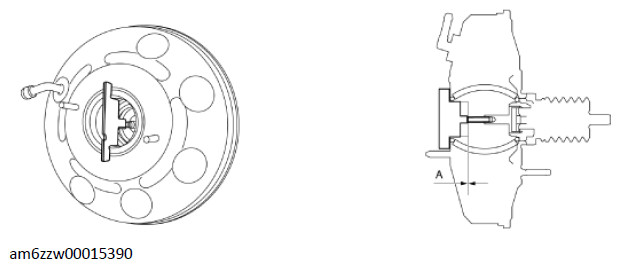

Fig 1: Checking Clearance Between Rod End And Plate
Courtesy of MAZDA MOTORS CORP.
