Front Combination Light Disassembly/Assembly

WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the screw.

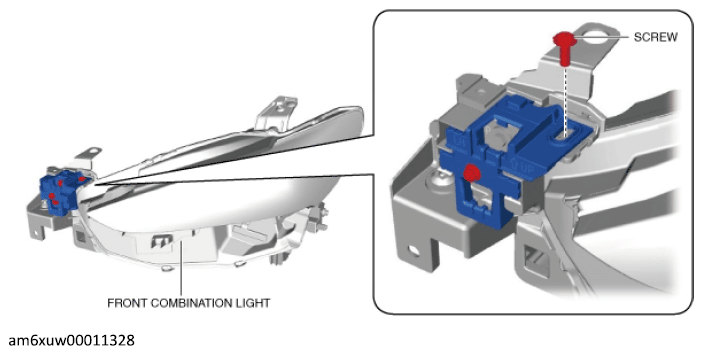

    Fig 1: Front Combination Light And Screw
    G12234899Courtesy of MAZDA MOTORS CORP.
  2. Remove the bolt and bracket A.

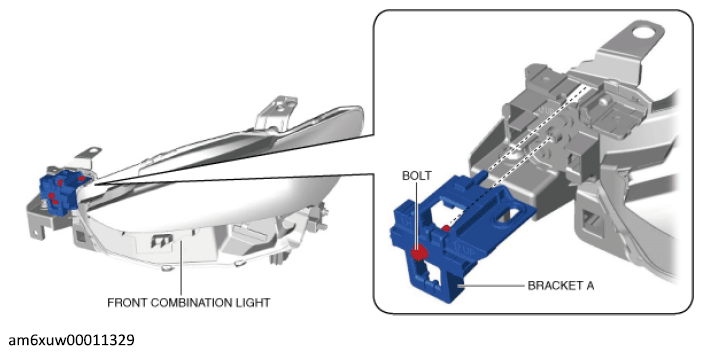

    Fig 2: Front Combination Light, Bolt And Bracket A
    G12234900Courtesy of MAZDA MOTORS CORP.
  3. Remove the bolts.

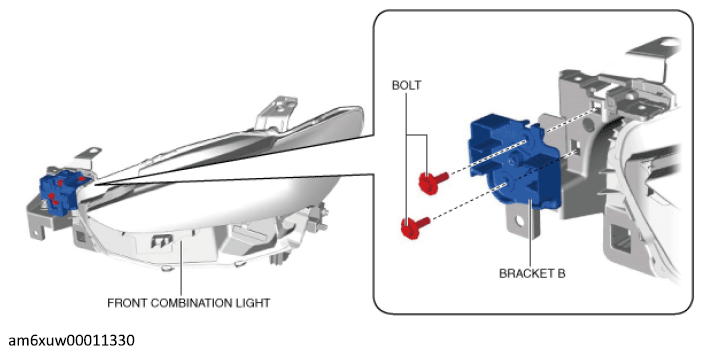

    Fig 3: Front Combination Light, Bolts And Bracket B
    G12234901Courtesy of MAZDA MOTORS CORP.
  4. Remove the bracket B.
  5. Assemble in the reverse order of disassembly.
