Light Switch Removal/Installation

WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)
  3. Rotate the steering wheel until the service hole in the position shown in the figure below is visible.

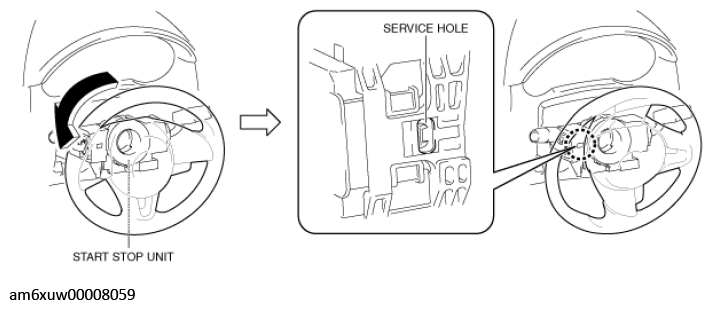

    Fig 1: Rotating Steering Wheel
    G11544728Courtesy of MAZDA MOTORS CORP.
  4. Insert a tape-wrapped flathead screwdriver into the service hole in the position shown in the figure below.
    Fig 2: Inserting Tape-Wrapped Flathead Screwdriver Into Service Hole
    G11544729Courtesy of MAZDA MOTORS CORP.
  5. While pressing the light switch tab in the direction of the arrow (1) shown in the figure below using a flathead screwdriver, pull out the light switch in the direction of the arrow (2) shown in the figure below to detach the light switch tab from the start stop unit.

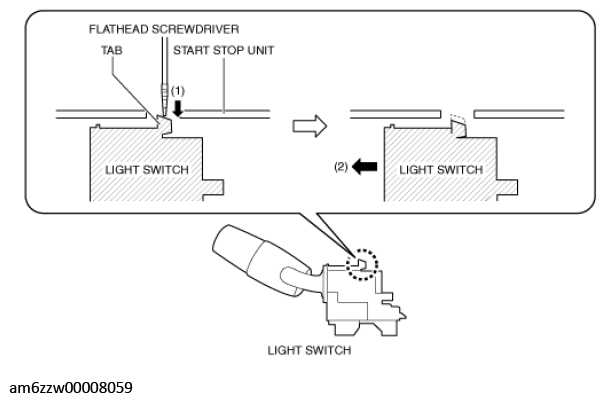

    Fig 3: Pressing Light Switch Tab
    G11544730Courtesy of MAZDA MOTORS CORP.
  6. Remove the light switch.

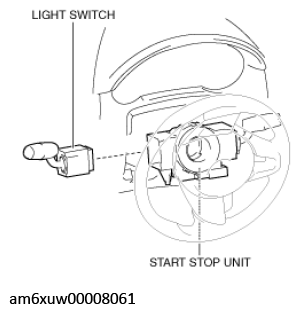

    Fig 4: Light Switch
    G11544731Courtesy of MAZDA MOTORS CORP.
  7. Install in the reverse order of removal.
