Front Map Light

WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Open the sunglasses holder.
Remove the screws.

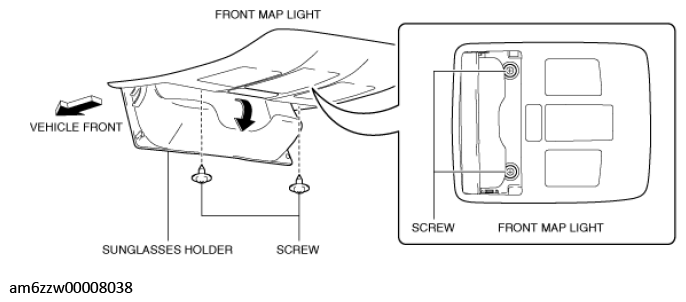

Fig 1: Opening Sunglasses Holder With Screws
Courtesy of MAZDA MOTORS CORP.
Move the front map light in the direction of the arrow (1) shown in the figure below to pull out the pin from the bracket.
CAUTION:
- Be careful not to pull the connector out strongly when removing the front map light. Otherwise, the contact surface of the wiring harness secured to the headliner will come off and the wiring harness could be pulled out. If the front map light is installed with the wiring harness pulled out, the wiring harness could get caught between the headliner and front map light bracket resulting in an open or short circuit in the wiring harness.

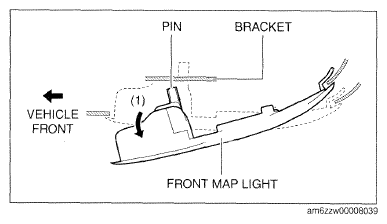

Fig 2: Pulling Out Pin From Bracket
Courtesy of MAZDA MOTORS CORP.
Move the front map light in the direction of the arrow (1) shown in the figure below to pull out the front map light hook from the headliner.

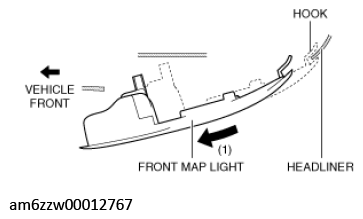

Fig 3: Pulling Out Front Map Light Hook From Headliner
Courtesy of MAZDA MOTORS CORP.
Disconnect the connector.

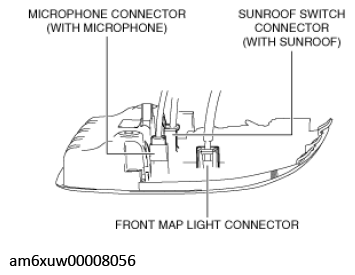

Fig 4: Front Map Light Connector, Microphone Connector And Sunroof Switch Connector
Courtesy of MAZDA MOTORS CORP.
Remove the front map light.

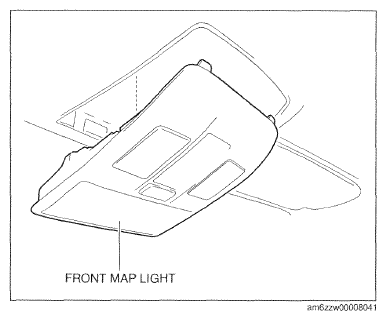

Fig 5: Front Map Light
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
