Rear Combination Light Removal/Installation: Notes

WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Fogging or condensation on the inside of the rear combination lights may occur due to a natural phenomenon occurring as a result of a temperature difference between the interior and exterior of the combination lights. However, it has no effect on the light performance because the temperature inside the rear combination lights rises after illuminating the rear turn light bulbs or a period of time has elapsed.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the following parts:
1. Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION .)
2. Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION .)
3. Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION .)
4. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
Partially peel back the trunk side trim. (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
Disconnect the connector.

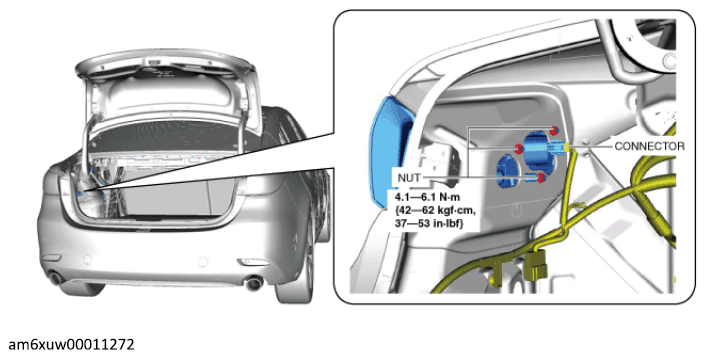

Fig 1: Rear Combination Light Connector And Nuts
Courtesy of MAZDA MOTORS CORP.
Remove the nuts.
To prevent scratches or damage, affix protective tape to the position shown in the figure below.
CAUTION:
- When the rear combination light is removed from the body, perform the procedure after affixing protective tape to the body. Otherwise, the body could interfere with the rear combination light and cause scratching or damage to the body.

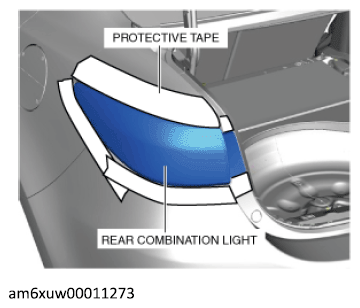

Fig 2: Affixing Protective Tape To Rear Combination Light
Courtesy of MAZDA MOTORS CORP.
Pull the rear combination light in the direction of the arrow shown in the figure below and pull out pins, stud bolts and hook from the body. (See Grommet Installation Note .)

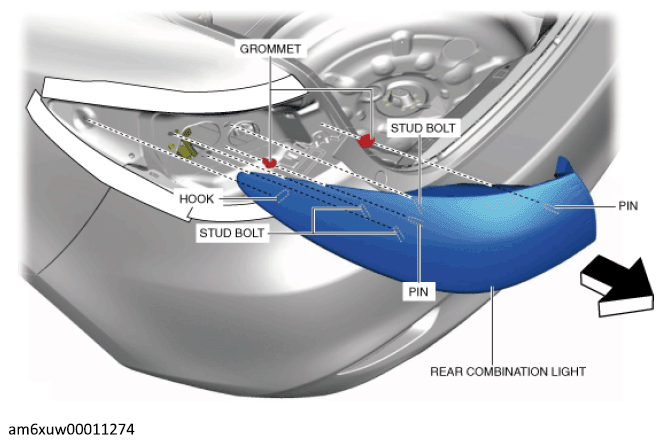

Fig 3: Pulling Rear Combination Light
Courtesy of MAZDA MOTORS CORP.
Remove the rear combination light.
Install in the reverse order of removal.
