Electrical System: Fuse: Other

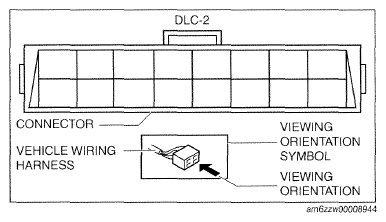

When it is necessary to show the terminal side of the vehicle wiring harness-side connectors, such as the following connectors, the viewing orientation is from the terminal side.
Courtesy of MAZDA MOTORS CORP.
Main fuse block and the main fuse block relays
Data link connector
Check connector
Relay box
