Front Shock Absorber And Coil Spring Disassembly/Assembly: Notes
WARNING:
- Removing/installing the front shock absorber and coil spring is dangerous. The front shock absorber and coil spring could fly off and cause serious injury or death, and damage the vehicle.
- Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION .)
- Remove the front shock absorber and coil spring. (See FRONT SHOCK ABSORBER AND COIL SPRING REMOVAL/INSTALLATION .)
- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- After replacing any of the following parts, inspect the wheel alignment and adjust it if necessary. (See FRONT WHEEL ALIGNMENT
.)
- Front shock absorber
- Coil spring

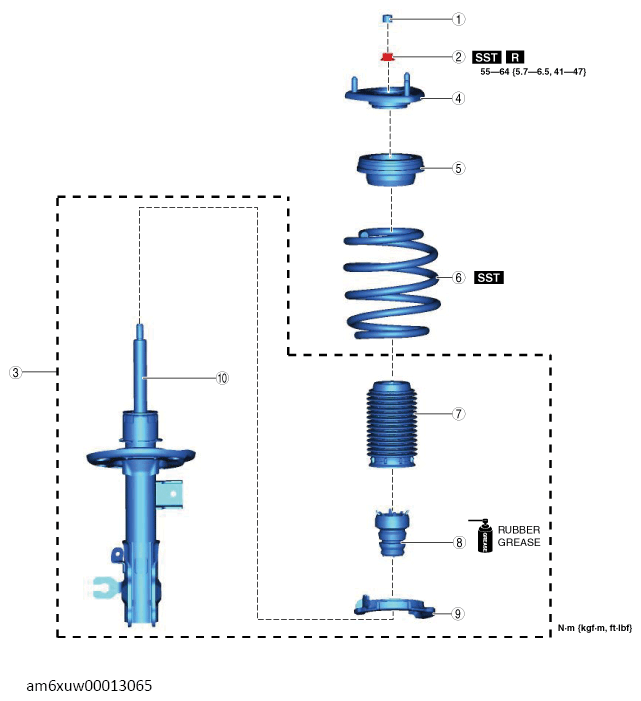

PARTS DESCRIPTION
| 1 | Cap |
| 2 | Piston rod nut (See PISTON ROD NUT REMOVAL NOTE .) |
| 3 | Front shock absorber assembly |
| 4 | Mounting rubber (See MOUNTING RUBBER INSTALLATION NOTE .) |
| 5 | Bearing |
| 6 | Coil spring (See COIL SPRING INSTALLATION NOTE .) |
| 7 | Dust boot |
| 8 | Bound stopper |
| 9 | Lower spring seat |
| 10 | Front shock absorber |
