Fuel Tank Removal/Installation: Notes

WARNING:
  • Highly pressurized fuel may spray out if the fuel line is cut. Due to the following dangers occurring with a fuel spray, always complete the "FUEL LINE SAFETY PROCEDURE " to prevent the fuel from spraying.
    • Fuel may cause irritation if it comes in contact with skin and eyes.
    • If fuel ignites and causes a fire, it may lead to serious injury or death, and damage to property and facilities.
  • A person charged with static electricity could cause a fire or explosion, resulting in death or serious injury. Before performing work on the fuel system, discharge static electricity by touching the vehicle body.
CAUTION:
  • Disconnecting/connecting the quick release connector without cleaning it may cause damage to the fuel pipe and quick release connector. Always clean the quick release connector joint area before disconnecting/connecting using a cloth or soft brush, and make sure that it is free of foreign material.
  1. Level the vehicle.
  2. Complete the "BEFORE SERVICE PRECAUTION". (See BEFORE SERVICE PRECAUTION .)
  3. Drain the fuel. (See FUEL DRAINING PROCEDURE .)
  4. Remove the rear seat cushion. (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)
  5. Remove the service hole cover.
    G09785306Courtesy of MAZDA MOTORS CORP.
  6. Disconnect the following parts:
  7. Remove the floor under cover. (See FLOOR UNDER COVER REMOVAL/INSTALLATION .)
  8. Disconnect the HO2S connector.
  9. Remove the TWC and HO2S as a single unit. (See EXHAUST SYSTEM REMOVAL/INSTALLATION .)
  10. Remove in the order indicated in the table.
  11. Install in the reverse order of removal.
  12. Complete the "AFTER SERVICE PRECAUTION". (See AFTER SERVICE PRECAUTION .)

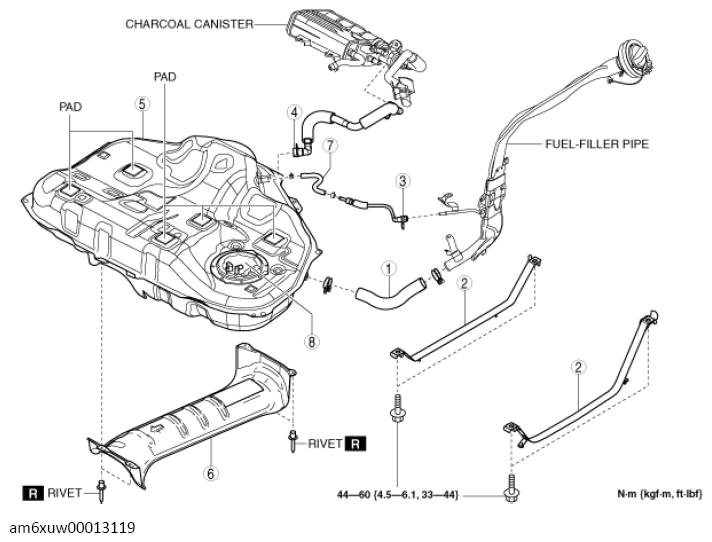

    Fig 1: Fuel Tank Components With Torque Specification
    G13721468Courtesy of MAZDA MOTORS CORP.
    PART DESCRIPTION

    1 Joint hose
    (See JOINT HOSE INSTALLATION NOTE .)
    2 Fuel tank strap
    3 Breather pipe
    (See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION .)
    4 Quick release connector
    (See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION .)
    5 Fuel tank
    (See FUEL TANK REMOVAL NOTE .)
    6 Fuel tank insulator
    (See FUEL TANK INSULATOR REMOVAL NOTE .)
    7 Breather hose
    (See BREATHER HOSE INSTALLATION NOTE .)
    8 Fuel pump unit
    (See FUEL PUMP UNIT REMOVAL/INSTALLATION .)
