Keyless Receiver Removal/Installation

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION .)
    2. Trunk board (with trunk board) (See TRUNK BOARD REMOVAL/INSTALLATION .)
    3. Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION .)
    4. Bass-box (with Bose ®) (See BASS-BOX REMOVAL/INSTALLATION .)
    5. Trunk box (See TRUNK BOX REMOVAL/INSTALLATION .)
    6. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
  3. Partially peel back the trunk side trim (RH) to the position allowing removal of the keyless receiver. (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
  4. Disconnect the connector.

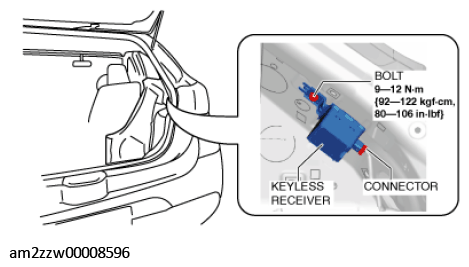

    Fig 1: Keyless Receiver, Connector And Bolt With Torque Specification
    G11472704Courtesy of MAZDA MOTORS CORP.
  5. Remove the bolt.
  6. Remove the keyless receiver.
  7. Install in the reverse order of removal.
