Remote Transmitter Disassembly/Assembly: Assembly

  1. Verify that the O-ring is installed to the remote transmitter.
    G13114673Courtesy of MAZDA MOTORS CORP.
    NOTE:
    • If the O-ring is removed, install it before installing the battery.
  2. Install a new battery (CR2025) in the direction of the arrow shown in the figure with the negative pole facing down.
    G13114674Courtesy of MAZDA MOTORS CORP.
  3. Install the cap.
  4. Align the cover to the transmitter from its end and press it in the direction of the arrow shown in the figure to engage the tabs of the cover with the remote transmitter.
    G13114675Courtesy of MAZDA MOTORS CORP.

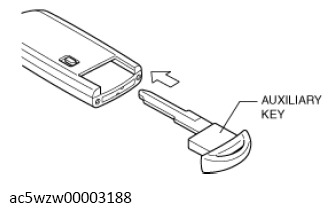

  5. Insert the auxiliary key.
    G13114676Courtesy of MAZDA MOTORS CORP.
